The Weld Bead PropertyManager lets you insert and define weld beads.
To display this PropertyManager, in a part, click Weld Bead (Weldments toolbar) or . In an assembly, click .
Weld Path
|
Smart Weld Selection Tool |
Lets you drag the pointer over the faces where you want to apply a weld bead. |
|
Select Faces |
Lists each unique weld path. The weld path is the course that the weld bead follows around the model. When you select a weld path in this box, the weld path preview in the graphics area changes colors. A pink preview indicates that the weld path is active. A yellow preview indicates that the weld path is inactive. Any changes you make in the PropertyManager apply to the active weld path.
|
|
New Weld Path |
Lets you define a new weld path. Click New Weld Path to create a new path that is disjointed from the previously created weld path. You do not need to use New Weld Path if you use the Smart Weld Selection Tool. Weld paths are supported between two bodies. You cannot define a weld path among three or more bodies or between the faces of one body.
|
Settings
The options in Settings apply per weld path. When you select an item under Weld Path, you can change the following options for the selected weld path.
From/To Length
You can use the settings below or use the handles in the graphics area to manipulate the weld bead.
|
Start point |
Lets you define where to start the weld bead from the first end. |
|
Reverse Direction |
Starts the weld bead in from the opposite end. |
|
Weld length |
Sets the length of the weld bead. |
|

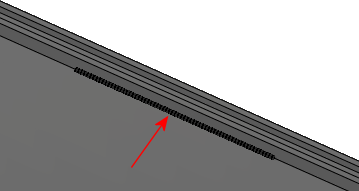

Weld bead defined with a Start point and Weld length |
Intermittent Weld
|
Gap and weld length |
Sets the Weld length and Gap for intermittent weld beads. |
|
Pitch and weld length |
Sets the Weld length and Pitch for intermittent weld beads. Pitch is defined as the weld length plus the gap. It is calculated from the center of one weld bead to the center of the next weld bead. |
|
Staggered |
Available for weld beads set to Both sides. The weld beads alternate positioning on either side of the bodies to weld.
|
