Model Items PropertyManager

Specify the following properties when you insert model items into a drawing.

Source/Destination

Source

Import items into all views. Inserts model items into all drawing views on the sheet. When cleared, you must select the drawing views to which you want to import model items.

Destination view(s). Lists the drawing views where the model items will be inserted. This option is available when Import items into all views is cleared.

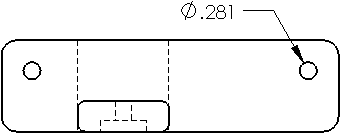

Dimensions

Eliminate duplicates. Inserts unique model items only; no duplicates are inserted.

Annotations

Select all. Inserts the following model items if they exist. Otherwise, select individual items as necessary.

Notes

Surface Finish

Geometric Tolerances

Datums

Datum Targets

Welds

Cosmetic Thread (assembly drawings only)

Reference Geometry

Select all. Inserts the following model items if they exist. Otherwise, select individual items as necessary.

Planes

Axes

Origins

Points

Surfaces

Curves

Routing points

Options

Include items from hidden features. Inserts model items for hidden features. Clear this option to prevent the insertion of annotations that belong to hidden model items. Performance is slower while hidden model items are filtered.

Use dimension placement in sketch. Inserts model dimensions from the part in the same locations in the drawing.

Layer

Inserts the model items to the specified drawing layer.
