RealView Graphics
RealView Graphics is hardware
(graphics card) support of advanced shading in real time. For example,
if you rotate a part, it retains its rendered appearance throughout the
rotation.
|
When you apply an appearance
or a physical material, use RealView
Graphics for a more realistic model display. RealView
Graphics is available with supported
graphics cards only.
To turn on RealView Graphics:
Click one of the following:
View
Settings  (Heads-up View toolbar), RealView
Graphics  RealView
Graphics (View
toolbar) View, Display, RealView
Graphics.
 RealView
Graphics is not available when an assembly is in Large
Assembly Mode.
|
|
Comparison of RealView and PhotoWorks:
|

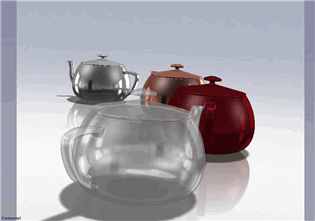

RealView Graphics |

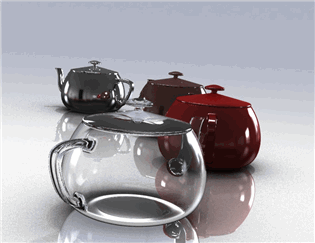

PhotoWorks Rendering |
|
hardware |
software |
|
dynamic |
static images |
|
retains rendering during motion |
must be rendered again after motion |
|
displays scenes, environment reflections, and self-shadows from the
first directional light |
provides customizable scene control; displays inter-reflections, shadows
from all light sources, depth of field, and high dynamic range reflections |
|
|
|
