Instant3D Rulers

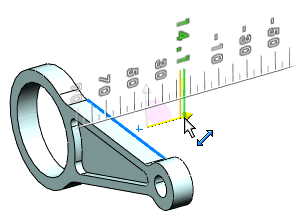

Use on-screen rulers to precisely measure modifications. |
|
|
|
An angular ruler appears for revolves, drafts, and when you use the
triad rings to rotate Live
Section Planes. |
|
|
|

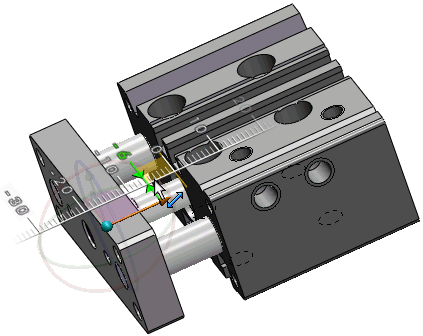

In assemblies, when you click Move
with Triad from the shortcut menu, rulers appear with the triad
so you can move components to a defined location. |
|
|
|
When you drag the triad handles to move features, rulers let you precisely
modify the position. |
|
|
|
When the pointer is away from the ruler, you have free drag of the dimensions.
Move the pointer over the ruler to snap to the ruler increments. |
|
|
|
The ruler also appears if you use Edit
Feature for these features:
Extrudes (boss, cut, and surface)
Revolves (boss, cut, and surface)
Base flange
|
If an entity is not draggable,
either the handle turns black or this icon appears when you try to drag it. The feature is either unsupported
or constrained.
