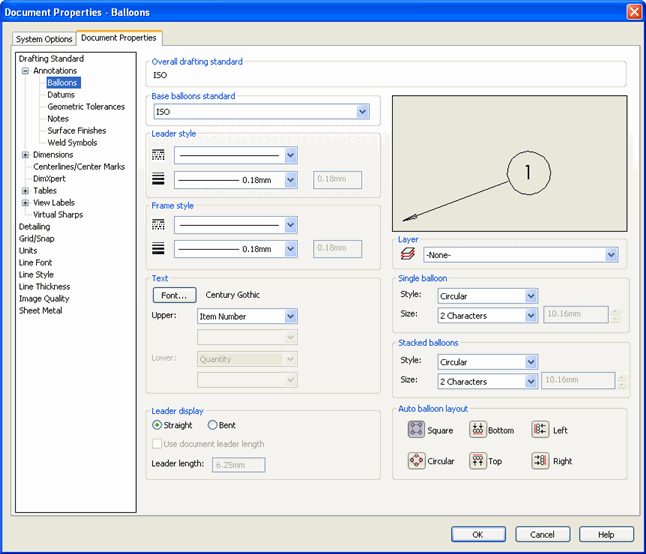

Document Properties > Annotations > Balloons



Setting

Get/Set Methods

Return Value or <Value>

Comments

Base balloons standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingBalloon)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingBalloon, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base balloons standard to use

Leader style - Leader Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonLeaderLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonLeaderLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>)

See swLineStyles_e for valid options



Leader style - Leader Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonLeaderLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonLeaderLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies the default style of unattached dimension arrows

Leader style - Custom thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBalloonLeaderLineThicknessCustom, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBalloonLeaderLineThicknessCustom, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies custom thickness for balloon leader lines; sets Custom Thickness to the specified thickness and Leader Thickness to Custom Size

Frame style - Frame Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonFrameLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonFrameLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e .<Value>)

See swLineStyles_e for valid options

Specifies the length of the annotation bend leaders in a drawing document

Frame style -  Frame Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonFrameLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonFrameLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options



Frame style - custom thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBalloonFrameLineThicknessCustom, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBalloonFrameLineThicknessCustom, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies custom thickness for balloon frame lines; sets Custom Thickness to the specified thickness and Leader Thickness to Custom Size

Text - Font...

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingBalloonTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingBalloonTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for valid font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Text - Upper

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMUpperText, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMUpperText, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonTextContent_e.<Value>)

See swBalloonTextContent_e for valid options

Specifies the upper section of the text of BOM balloons

Text - Upper - Custom property

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingBOMUpperCustomProperty, swuserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingBOMUpperCustomProperty, swuserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

String value



Text - Lower

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMLowerText, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMLowerText, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonTextContent_e.<Value>)

See swBalloonTextContent_e for valid options

Specifies the lower section of the text of BOM balloons

Text - Lower - Custom property

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingBOMLowerCustomProperty, swuserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingBOMLowerCustomProperty, swuserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

String value



Leader display - style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonLeaderStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBalloonLeaderStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLeaderStyle_e.<Value>)

See swLeaderStyle_e for valid options



Leader display - Use document leader length

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBalloonUseBentLeaderLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBalloonUseBentLeaderLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use bent leaders for annotations

Leader display - Leader length

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBalloonBentLeaderLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBalloonBentLeaderLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies length of the balloon bent leader

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swuserPreferenceOption_e.swDetailingBalloon)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swuserPreferenceOption_e.swDetailingBalloon, <Value>)

String value

Specifies the name of the layer to apply these settings to; this setting is available only on drawings

Single balloon - Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMBalloonStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMBalloonStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonStyle_e.<Value>)

See swBalloonStyle_e for valid options

Specifies shape of single BOM balloon

Single balloon - Size

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMBalloonFit, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMBalloonFit, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonFit_e.<Value>)

See swBalloonFit_e for valid options

Specifies size of single BOM balloon

Single balloon - Size - Custom size

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBOMBalloonCustomSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBOMBalloonCustomSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the custom size of a single BOM balloon; sets the Size spin box to the specified size and the Size dropdown to Custom Size

Stacked balloons - Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMStackedBalloonStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMStackedBalloonStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonStyle_e.<Value>)

See swBalloonStyle_e for valid options

Specifies the shapes of stacked BOM balloons

Stacked balloons - Size

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMStackedBalloonFit, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBOMStackedBalloonFit, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonFit_e.<Value>)

See swBalloonFit_e for valid options

Specifies the sizes of stacked BOM balloons

Stacked balloons - Size - Custom size

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBOMStackedBalloonCustomSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBOMStackedBalloonCustomSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the custom sizes of stacked BOM balloons; sets the Size spin box to the specified size and the Size dropdown to Custom Size

Auto balloon layout

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingAutoBalloonLayout, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingAutoBalloonLayout, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonLayoutType_e.<Value>)

See swBalloonLayoutType_e for valid options

Specifies default auto balloon layout
