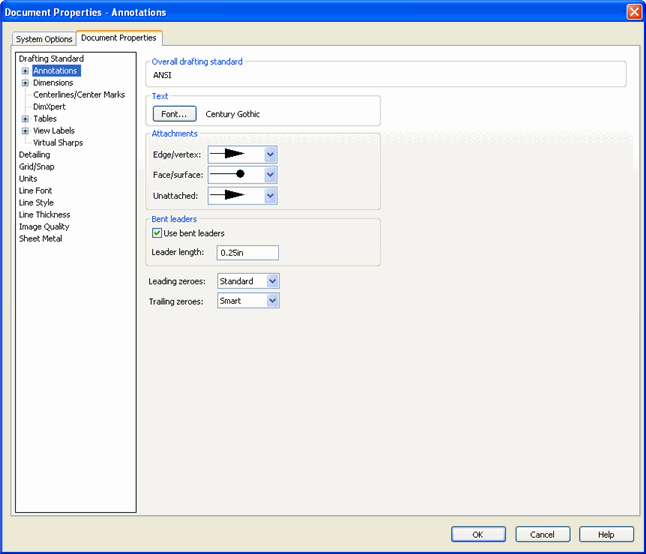

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingAnnotationTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingAnnotationTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method. |
|
Attachments - Edge/vertex |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForEdgeVertexAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForEdgeVertexAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>) |
See swArrowStyle_e
for valid options |
Specifies the default style of dimension arrows attached to edges |
|
Attachments - Face/Surface |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForFaceAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForFaceAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>) |
See swArrowStyle_e
for valid options |
Specifies the default style of dimension arrows attached to faces |
|
Attachments - Unattached |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForUnattached,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForUnattached,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>) |
See swArrowStyle_e
for valid options |
Specifies the default style of unattached dimension arrows |
|
Bent leaders - Use bent leaders |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationUseBentLeaders,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationUseBentLeaders,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to use bent leaders for annotations |
|
Bent leaders - Leader length |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingAnnotationBentLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingAnnotationBentLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the length of the annotation bend leaders in a drawing document |
|
Leading zeroes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero,
swUserPreferenceOption_e.swDetailingAnnotation)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero,
swUserPreferenceOption_e.swDetailingAnnotation, swDetailingLeadingZero_e.<Value>) |
See swDetailingLeadingZero_e
for valid options |
|
|
Trailing zeroes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero,
swUserPreferenceOption_e.swDetailingAnnotation)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero,
swUserPreferenceOption_e.swDetailingAnnotation, swDetailingDimTrailingZero_e.<Value>) |
See swDetailingDimTrailingZero_e
for valid options |
|
