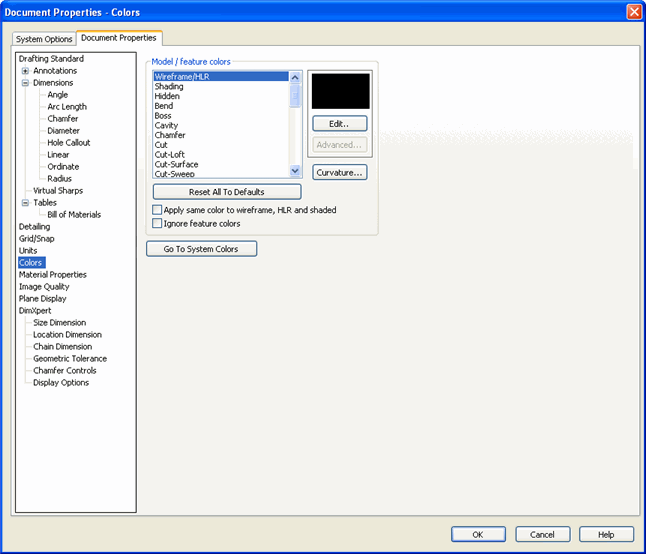

Document Properties > Colors



Setting

Get/Set Methods

Return Value or <Value>

Comments

Model/Feature colors - Wireframe/HLR

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorWireFrame, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorWireFrame, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Shading

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorShading, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorShading, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Hidden

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorHidden, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorHidden, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Bend

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBend, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBend, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Boss

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBoss, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBoss, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Cavity

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCavity, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCavity, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Chamfer

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatChamfer, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatChamfer, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Cut

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Cut-Loft

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoftCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoftCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Cut-Surface

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSurfCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSurfCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Cut-Sweep

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweepCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweepCut, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Weld Bead

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWeldBead, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWeldBead, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Extrude

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatExtrude, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatExtrude, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Fillet

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatFillet, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatFillet, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Hole

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatHole, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatHole, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Library Feature

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLibrary, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLibrary, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Loft

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoft, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoft, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - MidSurface

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatMidSurface, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatMidSurface, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Pattern

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatPattern, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatPattern, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Surface

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRefSurface, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRefSurface, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Revolution

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRevolution, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRevolution, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Shell

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShell, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShell, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Derived Part

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDerivedPart, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDerivedPart, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Sweep

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweep, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweep, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Thicken

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatThicken, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatThicken, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Rib

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRib, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRib, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Dome

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDome, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDome, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Form feature

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatForm, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatForm, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Shape Feature

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShape, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShape, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Replace Face

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatReplaceFace, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatReplaceFace, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Structural Member

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatStructuralMember, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatStructuralMember, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Gusset

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatGusset, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatGusset, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - End cap

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatEndCap, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatEndCap, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Wrap

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWrap, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWrap, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See IColorTable for valid options



Model/Feature colors - Apply same color to wireframe, HLR, and shaded

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsWireframeHLRShadedSame, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsWireframeHLRShadedSame, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to apply same color to wireframe, HLR, and shaded

Model/Feature colors - Ignore feature colors

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIgnoreFeatureColors, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIgnoreFeatureColors, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

For parts only; specifies whether to ignore feature colors
