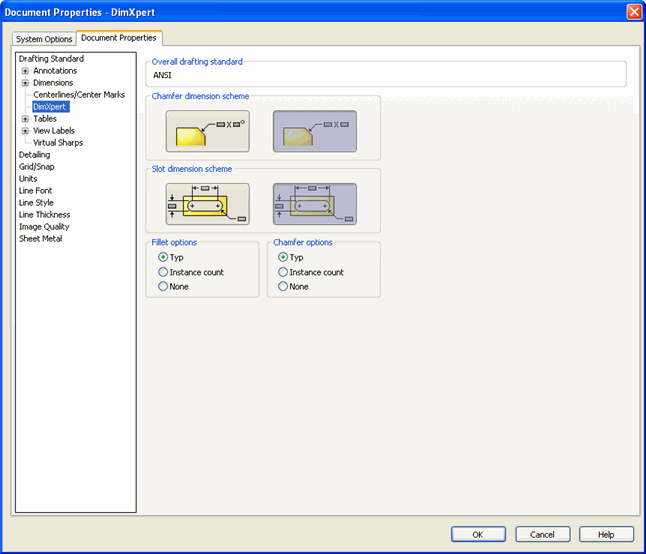

Document Properties > DimXpert



Setting

Get/Set Methods

Return Value or <Value>

Comments

Chamfer dimension scheme

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertChamferStyle_e.<Value>)

See swDetailingDimXpertChamferStyle_e for valid options

Specifies chamfer dimension scheme

Slot dimension scheme

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertSlotScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertSlotScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertSlotStyle_e.<Value>)

See swDetailingDimXpertSlotStyle_e for valid options

Specifies slot dimension scheme

Fillet options

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertFilletOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertFilletOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertFilletInstanceStyle_e.<Value>)

See swDetailingDimXpertFilletInstanceStyle_e for valid options

Specifies fillet options

Chamfer options

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertChamferInstanceStyle_e.<Value>)

See swDetailingDimXpertChamferInstanceStyle_e for valid options

Specifies chamfer options
