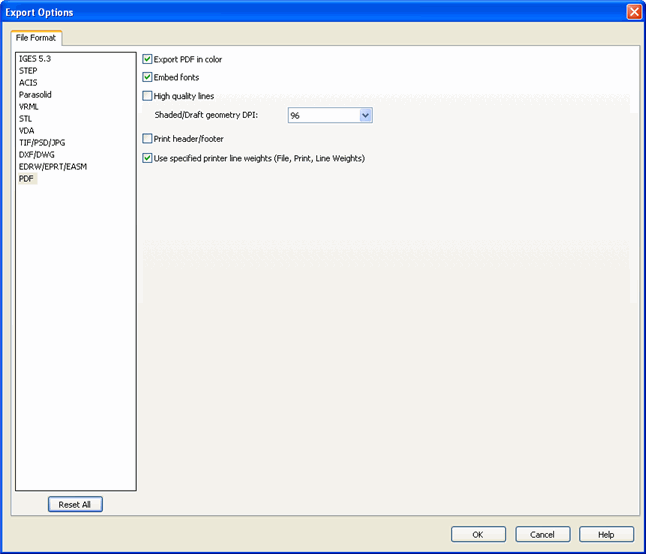

File > Save As > Save as type > PDF > Options > PDF

Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Export PDF in color

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportInColor)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportInColor, <OnFlag>)

Boolean value

Specifies whether to save documents in color when saving to PDF

Embed fonts

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportEmbedFonts)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportEmbedFonts, <OnFlag>)

Boolean value

Specifies whether to embed fonts when saving documents  to PDF

High quality

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportHighQuality)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportHighQuality, <OnFlag>)

Boolean value

Specifies whether to save drawing documents in high quality when saving to PDF

Shaded/Draft geometry DPI

See Comment

See Comment

Not currently available in the SolidWorks API

Print header/footer

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportPrintHeaderFooter)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportPrintHeaderFooter, <OnFlag>)

Boolean value

Specifies whether to use the header and footer specified in File > Print > Header Footer when saving documents to PDF

Use specified printer line weights (File > Print > Line Weights)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportUseCurrentPrintLineWeights)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPDFExportUseCurrentPrintLineWeights, <OnFlag>)

Boolean value

Specifies whether to use the default printer line weights when saving documents to PDF
