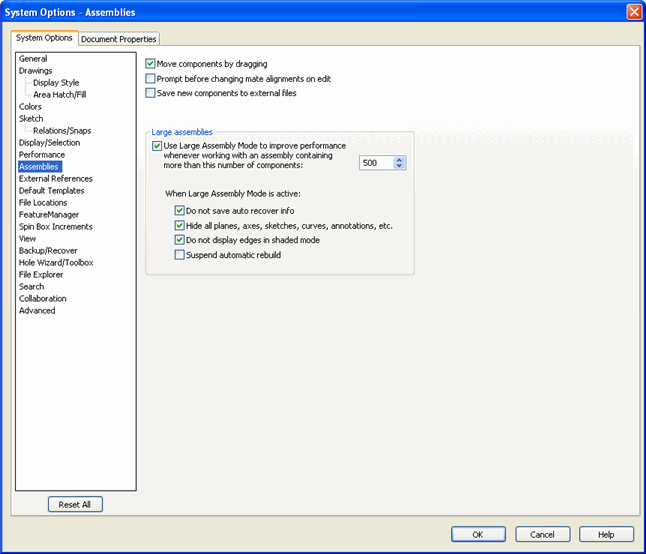

System Options > Assemblies

Setting

Get/Set Method

Return Value
or
<Value>
or
<OnFlag>

Comment

Move components by dragging

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowComponentMoveByDragging)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowComponentMoveByDragging, <OnFlag>)

Boolean value

Specifies whether to move assembly components by dragging them or using the Move with Triad and Move Component tools

Prompt before changing mate alignments on edit

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPromptForAutoMateFlip)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPromptForAutoMateFlip, <OnFlag>)

Boolean value

Specifies whether to prompt before automatically flipping a mate to avoid errors

Save new components to external files

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveNewComponentToExternalFile)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveNewComponentToExternalFile, <OnFlag>)

Boolean value

Specifies whether to save new components to external files

Large assemblies - Use Large Assembly Mode to improve performance whenever working with an assembly containing more than this number of components (checkbox)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeEnabled)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeEnabled, <OnFlag>)

Boolean value

Specifies whether to activate large assembly mode

Large assemblies - Use Large Assembly Mode to improve performance whenever working with an assembly containing more than this number of components (listbox)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLargeAsmModeThreshold)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLargeAsmModeThreshold, <Value>)

Integer value



When Large Assembly Mode is active - Do not save auto recover info

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeAutoRecover)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeAutoRecover, <OnFlag>)

Boolean value

Specifies whether to automatically save model information after specified number of changes

When Large Assembly Mode is active - Hide all planes, axes, sketches, curves, annotations, etc.

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeHideAllItems)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeHideAllItems, <OnFlag>)

Boolean value

Specifies whether to hide all planes, axes, sketches, curves, annotations, etc.

When Large Assembly Mode is active - Do not display edges in shaded mode

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeUseHLREdgesInShaded)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeUseHLREdgesInShaded, <OnFlag>)

Boolean value

Specifies whether to use HLR edges in shaded mode

When Large Assembly Mode is active - Suspend automatic rebuild

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeSuspendAutoRebuild)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeSuspendAutoRebuild, <OnFlag>)

Boolean value

Specifies to defer the update of assemblies so that you can make changes and rebuild the assembly once
