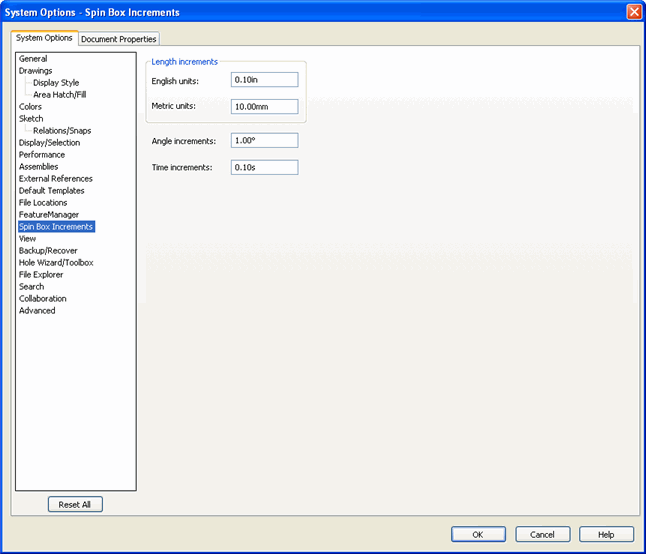

System Options > Spin Box Increments

Setting

Get/Set Methods

Return Value
or
<Value>

Comment

Length increments - English units

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxEnglishLengthIncrement)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxEnglishLengthIncrement, <Value>)

Double value in inches

Specifies number of inches added or subtracted when spin box arrow is clicked to change a linear dimension value; see Units to learn how to set length units using the SolidWorks API

Length increments - Metric units

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxMetricLengthIncrement)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxMetricLengthIncrement, <Value>)

Double value in metric units

Specifies number of units added or subtracted when a spin box arrow is clicked to change a linear dimension value; see Units to learn how to set length units using the SolidWorks API

Angle increments

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxAngleIncrement)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxAngleIncrement, <Value>)

Double value in angular units

Specifies number of angular units added or subtracted when a spin box arrow is clicked to change an angular dimension value; see Units to learn how to set angular units using the SolidWorks API

Time increments

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxTimeIncrement)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSpinBoxTimeIncrement, <Value>)

Double value in time units

Specifies number of units added or subtracted when a spin box arrow is clicked to change a time value; see Units to learn how to set time units using the SolidWorks API
