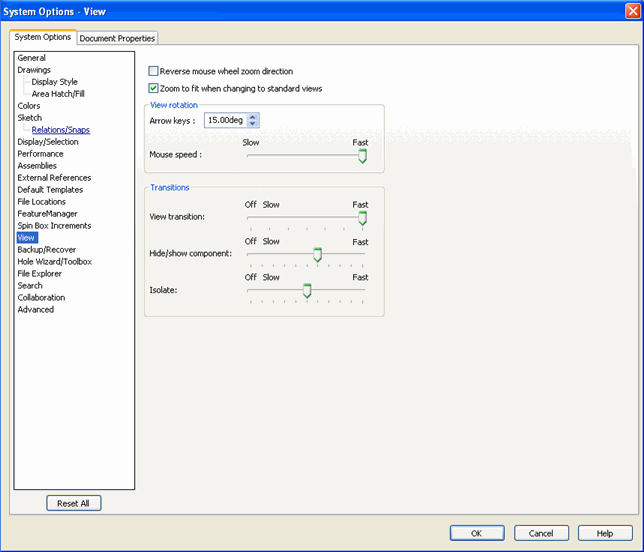

System Options > View

Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Reverse mouse wheel zoom direction

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewReverseWheelZoomDirection)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewReverseWheelZoomDirection, <OnFlag>)

Boolean value

Specifies whether to reverse a mouse's wheel zoom direction

Zoom to fit when changing to standard views

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewZoomFitAndCenter)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewZoomFitAndCenter, <OnFlag>)

Boolean value

Specifies whether to zoom-to-fit view when changing to standard views

View rotation - Arrow keys

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewRotationArrowKeys)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewRotationArrowKeys, <Value>)

Double value in radians

Specifies angle increment for view rotation when arrow keys are used to rotate model

View rotation - Mouse speed

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swViewRotationMouseSpeed)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swViewRotationMouseSpeed, <Value>)

Integer value from 1 to 100

Specifies the speed of rotation when you use the mouse to rotate the model or assembly component

Transitions - View transition

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewAnimationSpeed)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewAnimationSpeed, <Value>)

Double value:

  • 0 = off

  • >0 - 3 seconds

Specifies animation-like speed when changing views

Transitions - Hide/show component

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionHideShowComponent)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionHideShowComponent, <Value>)

Double value

Specifies the animation-like speed at which to transition the view when hiding or showing components

Transitions - Isolate

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionIsolate)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionIsolate, <Value>)

Double value

Specifies the animation-like speed at which to transition the view when isolating a component in assemblies and multi-body parts
