This topic defines some of the terms associated with the Edge Weld connector.
- Fillet Weld
- A triangular weld that joins two metal parts at a right angle.
All fillet welds defined in the Edge Weld PropertyManager have a 450 configuration.
- Groove Weld
- A weld applied in a preformed opening or groove between two metal parts.
Groove welds defined in the Edge Weld PropertyManager can represent all edge-to-edge weld types (square butt, V, J, & U conditions).

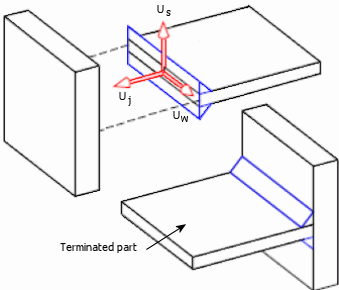

- Local Weld Joint Coordinate System
- Edge weld results are calculated for all mesh nodes on the intersecting edge of the terminated part. Results are calculated with respect to a local coordinate system established at each node as shown in the figure.
- Surface Normal, Us: Axis is normal to the top surface of the shell of the terminated part .
- Weld Joint Normal, Uj: Axis is normal to the intersecting shell edge of the terminated part and oriented away from the part.
- Weld Axis, Uw: Axis runs parallel to the direction of the weld seam. Its direction is defined by Uw = Us x Uj.

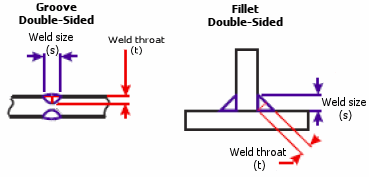

- Weld Size
- The dimension of the joint penetration of a groove weld (s). The distance from the root to the toe of a fillet weld (weld leg).
- Weld Throat
- The minimum distance from the root of the weld to the face of the weld (t).

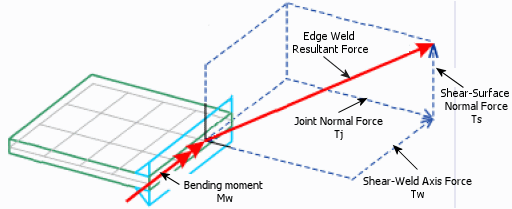

- Joint Normal Force
- A component of the weld force (Tj) acting normal to the intersecting shell edge of the terminated part along the weld joint normal axis, Uj. Units given in force / unit weld length.
- Shear Weld Axis Force
- A component of the weld force (Tw) acting parallel to the weld seam along the local weld axis, Uw. Units given in force / unit weld length.
- Shear Surface Normal Force
- A component of the weld force (Ts) acting along the local surface normal axis, Us. Units given in force / unit weld length.
- Bending Moment
- A moment (Mw) acting about the local weld axis, Uw. Units given in moment / unit weld length.
