AssemblyXpert - In-Context Relationship Conflicts

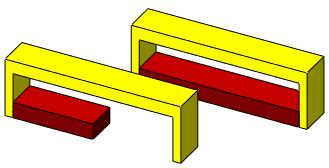

If an assembly contains sub-assemblies where a component with a single configuration is driven by an in-context relationship to a component with multiple configurations, the result can be conflicts when rebuilding the assembly.

To list the components with conflicts:

Click Analyze and Fix in AssemblyXpert.

In the dialog box, you can:

    • Select a component and click Fix It. To resolve the conflict, the software adds a derived configuration to the selected component.

  • Print the list, copy it to the clipboard, or save it to a file.

Related Topics

AssemblyXpert
