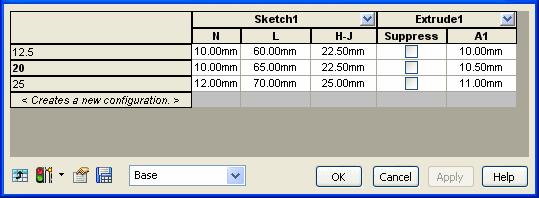

The Modify Configurations dialog box provides a table where you can create and modify configurations for commonly configured parameters in parts and assemblies.
Operations
You can perform the following operations in the
Modify Configurations dialog box:
- Add, delete, and rename configurations.
- Create, edit, and delete configuration-specific custom properties.
- Rename features and dimensions.
- Unconfigure parameters, which applies the active configuration's value to all configurations.
In parts, you can configure:
- Dimensions of features and sketches
- Suppression states of features and sketches
- Material
- Custom properties
In assemblies, you can configure:
- Which configurations of components to use
- Dimensions of assembly features and mates
- Suppression states of components, assembly features, and mates
- Custom properties
Working with the Table
You can manipulate the table to:
- Add and remove feature parameters
- Change which configuration is active
- Rearrange columns
You can name and save multiple views of the table for future reference and editing.
Tables are saved in the
Tables
folder on the ConfigurationManager
tab.
