On Flat Face

You can use this option only when all the selected faces are planar. Each face can be in a different plane. Each face is restrained relative to its own directions (Direction 1, Direction 2, and Normal).

Attribute	Value
Possible DOFs for solid meshes	3 translations
Possible DOFs for shell meshes	3 translations and 3 rotations
3D symbol	translation	rotation
Selectable entities	Planar faces only
Translations	Along face direction 1
	Along face direction 2
	Normal to face
Rotations (for shells only)	About face direction 1
	About face direction 2
	About normal to face

Search 'On Flat Face' in the SOLIDWORKS Knowledge Base.

Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:		Feedback on Help Topics
Page:		On Flat Face
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Cancel

Print Topic

Select the scope of content to print:

This topic and all topics linked from this topic

Just this topic

This topic and only immediate topics under it

This selected topic and all subtopics

Cancel

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

Never show this message again

Web Help Content Version: SOLIDWORKS 2012 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.

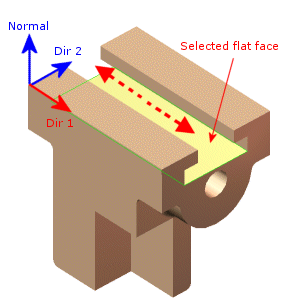

The selected flat face (shown in yellow) can only slide along in the direction shown by dashed red arrows, for example, Dir 1 of the face. Setting the other two directions (Dir 2 and Normal) to zero enforces this condition.

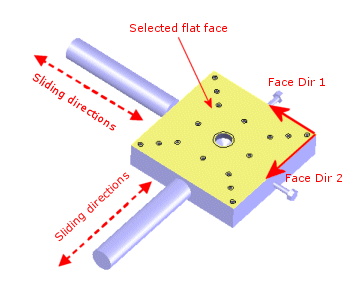

The selected flat face (shown in yellow) can slide along Face Dir 1 and Face Dir 2. Setting the normal motion to zero enforces this condition.

The desk shown above is free to move on the ground (dashed red arrows) and no normal motion (solid blue arrow) is allowed.	The selected flat faces (shown in yellow) can slide freely along Dir 1 and Dir 2 of the selected faces and restrained in the Normal direction.

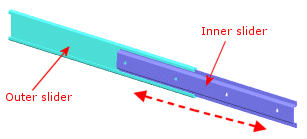

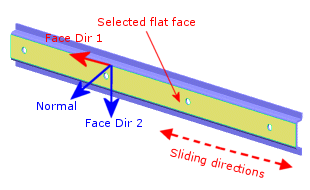

The inner slider is free to slide along the directions shown in dash arrows.	Use to the On flat face restraint type to specify zero displacements along Face Dir 2 and Normal to the face.
