Center Mark PropertyManager

Set the properties when inserting center marks in drawings. The properties available vary depending on the type of center mark selected.

To display this PropertyManager, in a drawing, click Center Mark Tool_Annotate_Center_Mark.gif (Annotations toolbar) or Insert > Annotations > Center Mark.

Style

Defines the center mark style.

Auto Insert

  For all holes

Options
  For all fillets

Options
  For all slots

Options

Slot center marks

PM_Center_Mark_Slot_Center.gif Slot Centers

Insert center marks into slot centers in straight slots
PM_Center_Mark_Slot_Ends.gif Slot Ends

Insert center marks into slot ends in straight slots
PM_Center_Mark_Arc_Slot_Center.gif Arc Slot Centers

Insert center marks into slot centers in arc slots
PM_Center_Mark_Arc_Slot_Ends.gif Arc Slot Ends

Insert center marks into slot ends in arc slots

Options

Connection lines
Connects the center mark symbols.
Circular lines
Creates the large circular centerline through the holes in the pattern.
Radial lines
Creates lines from the pattern's center out to holes in the pattern.
Base center mark
Adds a center mark to the pattern's center.

Manual Insert Options

PM_Center_Mark_Single.gif Single Center Mark

PM_Center_Mark_Linear.gif Linear Center Mark

Insert center marks into a linear pattern of circles or arcs. When a linear pattern is recognized, click Propagate Propagate.gif to create center marks in all instances of the pattern.

Connection lines. Connects the center mark symbols.

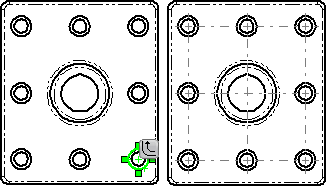

centermark_linear.gif centermarks_linear.gif
Center marks propagated to a linear pattern Linear center marks with connections lines
PM_Center_Mark_Circular.gif Circular Center Mark

Insert center marks into a circular pattern of circles or arcs.

Options


Slot center mark
PM_Center_Mark_Slot_Center.gif Slot Centers

Insert center marks into slot centers in straight slots
PM_Center_Mark_Slot_Ends.gif Slot Ends

Insert center marks into slot ends in straight slots
PM_Center_Mark_Arc_Slot_Center.gif Arc Slot Centers

Insert center marks into slot centers in arc slots
PM_Center_Mark_Arc_Slot_Ends.gif Arc Slot Ends

Insert center marks into slot ends in arc slots

Display Attributes

Clear Use document defaults to change the following attributes set from Document Properties - Centerlines/ Center Marks.

Mark size

Extended lines
Center points are center marks with Extended lines turned off. You can drag the extended lines to resize them.
Selected Cleared
centermarks_extended_lines.gif centermarks_no_extended_lines.gif
Centerline font
Selected Cleared
centerline_font_selected.gif centerline_font_cleared.gif

Angle

PM_angle.gif Angle If the center mark is rotated because the view is rotated, the rotation angle appears here. A positive angle rotates the center mark counterclockwise.

Layer

Layer In drawings with named layers, select a layer.
Parent topic: Center Marks
