You can specify document-level drafting settings for notes.
To open this page, with a drawing open, click
Options
(Standard toolbar), select the Document Properties tab, and then select .
Overall drafting standard
| Overall drafting standard
|
Inherited from the selected Drafting Standard page settings. |
Base notes standard
| Base notes standard
|
Select a standard: - ANSI
- ISO
- DIN
- JIS
- BSI
- GOST
- GB
|
Leader style
 Leader Style
|
Select: a style. |
 Leader Thickness
|
Select: a thickness or select Custom Size and enter a thickness. |
Text
| Font
|
Click to modify the font.
|
Leader anchor
| Leader anchor
|
Select a default anchor position:
|
 |
Leader display
| Leader display
|
Select from:
- Straight
-
Bent. Inserts a horizontal bend in the leader that is aligned with the text. Select either:
-
Use document leader length. Derives leader length from the Annotations page settings.
- Leader length. Lets you enter the length of the unbent portion of the leader.
- Underlined
|
| Leader justification snapping (available for the DIN and JIS standards) |
Allows the
leader in a balloon to snap to one side of the balloon.
|

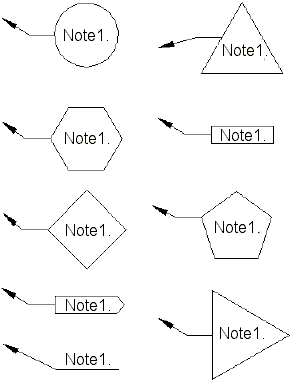

Border
| Style
|
Select None to display the note text with no border, or select a border style. |
 |
| Size |
Select a size from the list (a specified number of characters), Tight Fit (which adjusts automatically to the text), or Custom Size (where you can set the balloon size). |
 |
Layer
| Layer
|
Select a layer. You must first create layers for the drawing before you can select them for document properties.
|
You must select
Per Standard for
Layer (Layer toolbar) in the drawing view document to apply these layer settings.
