Sketch Relations in 3D Sketches

Many relations available in 2D sketches are available in 3D sketches. Additional sketch relations supported with 3D sketching include:

  • Perpendicular relations between a line through a point on a surface.

  • Relations between 3D sketch entities created on one sketch plane, and 3D entities created on other sketch planes.

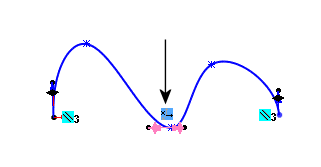

  • Symmetric relations about a line between 3D sketches created on the same plane.

No relations applied

Symmetric relations applied

  • Relations with spline handles such as along an axis or between handles.

Relation along X axis highlighted

  • Midpoint relations.

  • Equal relations.

  • Tangent or equal curvature relations between faces and splines .

  • Relations between arcs and other sketch entities.

  • Relations between arcs such as concentric, tangent, or equal.

  • Normal to applied between a line and a plane, or between two points and a plane.

In a 3D sketch, you can sketch entities along global X, global Y, or global Z axis.

Arc with perpendicular line created on perpendicular planes

Arc with tangent line and perpendicular line to the midpoint between entities

Equal arcs created on perpendicular planes

  • Concentric and perpendicular relations between a cone and a 3D sketch line.

Conical entity and 3D line sketch

Concentric relation between entities

Perpendicular relation between entities
