Dimensioning from Flanges

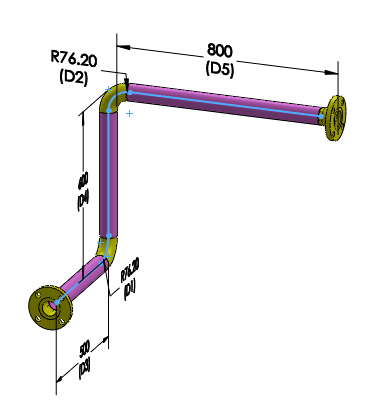

In route models, you can define driving dimensions that start with the end face of a flange. Adding a dimension between a flange face and a route does not cause the sketch to be over defined.

In previous releases, you could not add dimensions between the end face of a flange and a route.

dimensioning_flange
Parent topic: Routing
