Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |

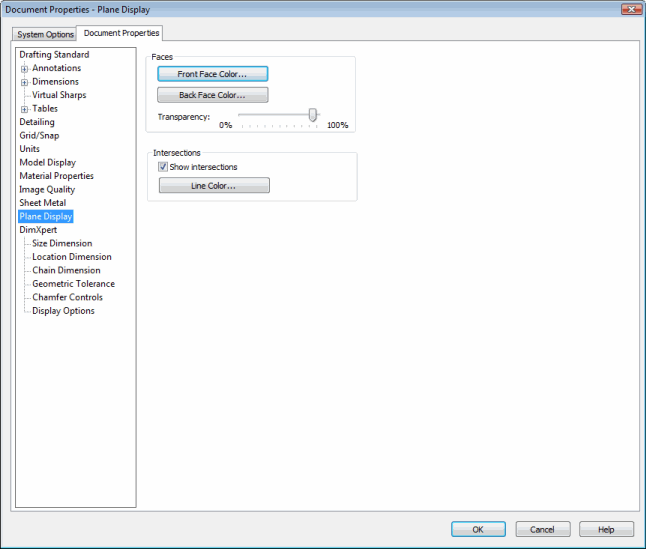

Faces - Front Face Color... |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayFrontFaceColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayFrontFaceColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB color value |
|
Faces - Back Face Color... |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayBackFaceColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayBackFaceColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB color value |
|
Faces - Transparency |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayTransparency,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayTransparency,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer percentage value (0 - 100) |
|
Intersections - Show intersections |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPlaneDisplayShowIntersections,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPlaneDisplayShowIntersections,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to display the line at which two planes intersect |
Intersections - Line Color... |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayIntersectionLineColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPlaneDisplayIntersectionLineColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB color value |
|
