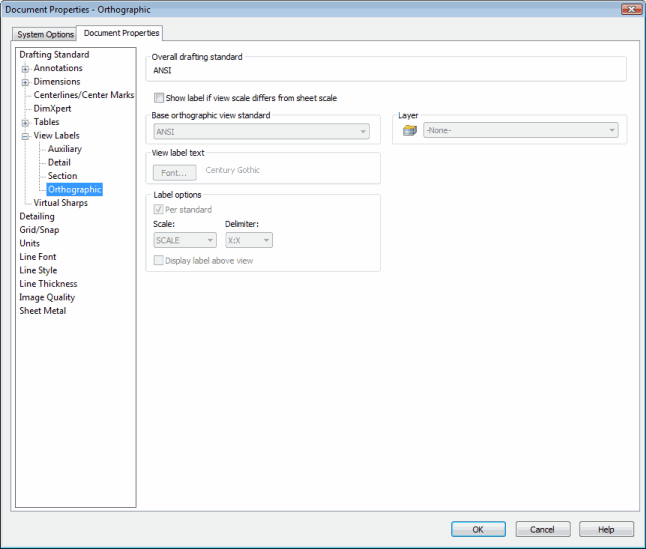

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
Show label if view scale differs
from sheet scale |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabelsEnableShow,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabelsEnableShow,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to display the scale
label in the orthographic view if the view scale differs from the sheet
scale |
Base orthographic view standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingOrthoView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingOrthoView, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base orthographic view standard to use |
View label text - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoLabelTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoLabelTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
Label options - Per standard |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_PerStandard,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_PerStandard,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
If... |
Then display the orthographic view label according
to the format... |
True |
Required by the current detailing standard |
False |
Determined by these document-level user preferences:
swDetailingOrthoViewLabels_Scale
swDetailingOrthoViewLabels_Delimiter |
|
Label options - Scale |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Scale,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Scale,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsScale_e.<Value>) |
See swDetailingViewLabelsScale_e
for valid options |
Specifies the format of the label to use in front of the scale value |
Label options - Delimiter |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Delimiter,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Delimiter,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsDelimiter_e
.<Value>) |
See swDetailingViewLabelsDelimiter_e
for valid options |
Specifies the format of the scale value |
Label options - Display label above view |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_AboveView,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_AboveView,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to display the label above the detail view |
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingOrthoView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingOrthoView, <Value>) |
Valid Options:
"BORDER"
-
"CENTER"
-
"CONTINUOUS"
"DIM"
-
"FORMAT"
-
"HIDDEN"
-
"RED"
-
"TEXT"
-
"THIN"
|
This setting is available only on drawings; depending on drawing, some
options may not apply |
