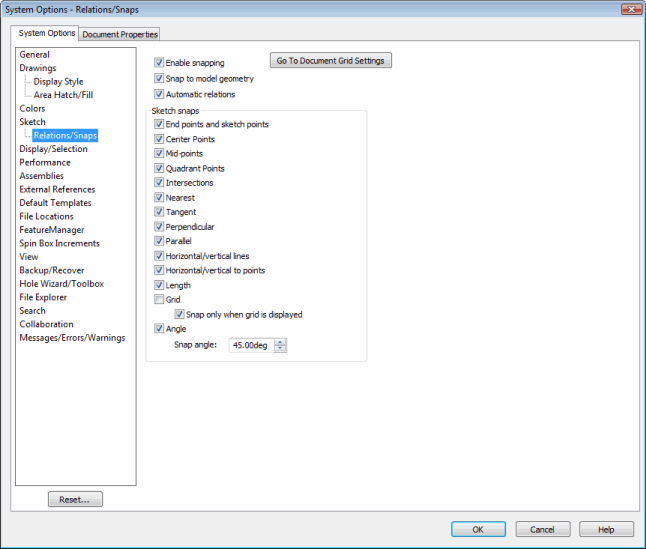

This topic contains two tables. The information in the table:
Setting |
Get/Set Methods |
Return Value
or
<OnFlag> |
Comment |
Enable snapping |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInference)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInference,
<OnFlag>) |
Boolean value |
Specifies whether to enable snapping |
Snap to model geometry |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInferFromModel)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInferFromModel,
<OnFlag>) |
Boolean value |
Specifies whether to display inferencing lines that relate to lines
and vertices of underlying model when sketching on face of extruded part |
Automatic relations |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchAutomaticRelations)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchAutomaticRelations,
<OnFlag>) |
Boolean value |
Specifies whether to automatically create geometric relations when adding
sketch entities |
Sketch Snaps - End points and sketch points |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPoints)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPoints,
<OnFlag>) |
Boolean value |
Specifies whether to snap to the end of the following sketch entities:
lines, polygons, rectangles, parallelograms, fillets, arcs, parabolas,
partial ellipses, splines, points, chamfers, and centerlines |
Sketch Snaps - Center Points |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsCenterPoints)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsCenterPoints,
<OnFlag>) |
Boolean value |
Specifies whether to snap to the center of the following sketch entities:
circles, arcs, fillets, parabolas, and partial ellipses |
Sketch Snaps - Mid-points |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsMidPoints)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsMidPoints,
<OnFlag>) |
Boolean value |
Specifies whether to snap to the midpoints of lines, polygons, rectangles,
parallelograms, fillets, arcs, parabolas, partial ellipses, splines, points,
chamfers, and centerlines |
Sketch Snaps - Quadrant Points |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsQuadrantPoints)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsQuadrantPoints,
<OnFlag>) |
Boolean value |
Specifies whether to snap to the quadrants of circles, arcs, fillets,
parabolas, ellipses, and partial ellipses |
Sketch Snaps - Intersections |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsIntersections)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsIntersections,
<OnFlag>) |
Boolean value |
Specifies whether to snap to the intersections of entities that meet
or entities that intersect |
Sketch Snaps - Nearest |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsNearest)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsNearest,
<OnFlag>) |
Boolean value |
Specifies whether to support all entities; turn on to enable all snaps;
your pointer does not need to be in the immediate vicinity of another
sketch entity to show inference or snap to that point; turn off to enable
snaps only when the pointer is in the vicinity of the snap point |
Sketch Snaps - Tangent |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsTangent)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsTangent,
<OnFlag>) |
Boolean value |
Specifies wither to snap to tangents on circles, arcs, fillets, parabolas,
ellipses, partial ellipses, and splines |
Sketch Snaps - Perpendicular |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPerpendicular)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPerpendicular,
<OnFlag>) |
Boolean value |
Specifies whether to snap a line to another line |
Sketch Snaps - Parallel |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsParallel)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsParallel,
<OnFlag>) |
Boolean value |
Specifies whether to create a parallel entity to lines |
Sketch Snaps - Horizontal/vertical lines |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVLines)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVLines,
<OnFlag>) |
Boolean value |
Specifies whether to snap a line vertically to an existing horizontal
sketch line, and horizontally to an existing vertical sketch line |
Sketch Snaps - Horizontal/vertical to points |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVPoints)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVPoints,
<OnFlag>) |
Boolean value |
Specifies whether to snap a line vertically or horizontally to an existing
sketch point |
Sketch Snaps - Length |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsLength)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsLength,
<OnFlag>) |
Boolean value |
Specifies whether to snap to lines to the increments that are set by
the grid, without requiring display of the grid |
Sketch Snaps - Grid |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsGrid)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsGrid,
<OnFlag>) |
Boolean value |
Specifies whether to snap sketch entities to the grid's vertical and
horizontal divisions; this is the only sketch snap that is not active
by default; replaces the now obsolete document-level Boolean swSnapToPoints |
Sketch Snaps - Snap only when grid is displayed |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapToGridIfDisplayed)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapToGridIfDisplayed,
<OnFlag>) |
Boolean value |
Specifies whether to only snap to the grid when it is displayed; replaces
the now obsolete document-level Boolean enumerator swSnapOnlyIfGridSplayed |
Sketch Snaps - Angle |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsAngle)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsAngle,
<OnFlag>) |
Boolean value |
Specifies whether to snap to angles; replaces the now obsolete document-level
Boolean enumerator swSnapToAngle |
Sketch Snaps - Snap angle |
ISldWorks::GetUserPreferenceDoubleValue(
swUserPreferenceDoubleValue_e.swSketchSnapsAngleValue)
ISldWorks::SetUserPreferenceDoubleValue(
swUserPreferenceDoubleValue_e.swSketchSnapsAngleValue, <Value>)
|
Double value |
Specifies angle to which to snap; replaces the now obsolete document-level
double enumerator swSnapToAngleValue |
