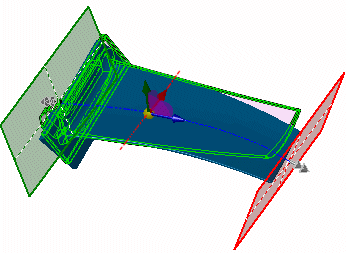

Example of Flex Bending

Move the pointer over the triad arrows to display the drag/rotate pointer. Right-click to rotate the triad, which changes the direction of bend. Left-click to reposition the triad.

Move the pointer over the trim plane manipulators to display the move pointer . Drag the manipulators to position the trim planes.

Move the pointer over the edge of the trim planes to display the bending pointer . Drag the trim planes to modify the flex feature.

Result of Bending
