Selects entities that are hidden by other entities.
To select hidden items:
- In a part or assembly document, right-click the model in the graphics area and choose Select Other
.
- The pointer changes to

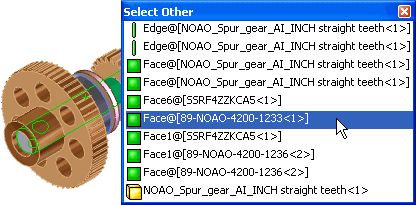

and a box appears with a list of entities (faces, edges, sub-assemblies, etc.) that lie beneath the pointer, in the order in which they are encountered. An icon displays the type of entity (face, edge, etc.).
- Hover the pointer over items in the list to highlight them in the graphics area.
- To scroll through the list, press Tab or roll the middle mouse button.
- You can right-click on the model to hide faces, revealing other hidden faces and edges.
- Click in the list or the graphics area to select an entity.
