Cosmetic Threads in Configurations

You can configure callouts for cosmetic threads.

Cosmetic thread callouts are editable, and therefore configurable, only when Standard is set to None in the Cosmetic Thread PropertyManager.

Use one of the following methods.

PropertyManager

Under Thread Callout, click Configurations and specify the configurations to which the callout applies.

Design Table

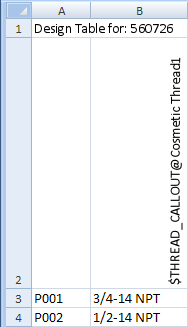

The column header for controlling the callout of a cosmetic thread uses this syntax:

$THREAD_CALLOUT@cosmetic_thread_feature_name

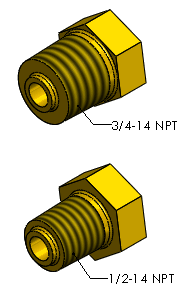

Example:
