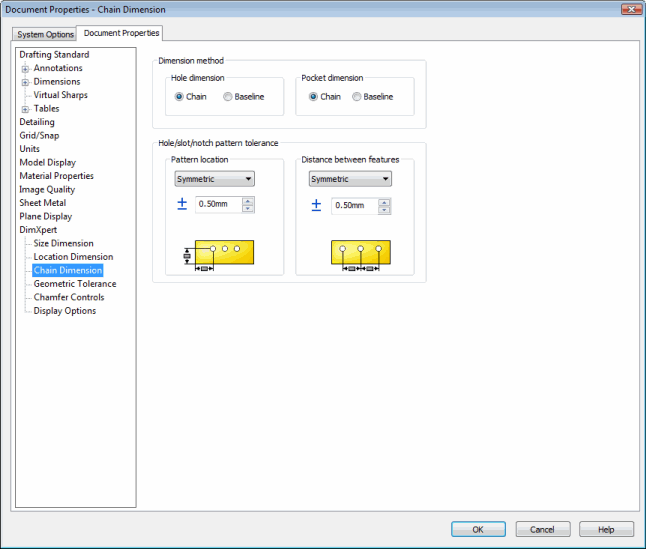

Document Properties > DimXpert > Chain Dimension

Setting

Get/Set Methods

Return Value or <Value>

Comments

Dimension method - Hole dimension - Chain or Baseline

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertChainHoleDimensionChain, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertChainHoleDimensionChain, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use a chain or baseline type of dimension for holes

Dimension method - Pocket dimension - Chain or Baseline

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertChainPocketDimensionChain, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertChainPocketDimensionChain, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use a chain or baseline type of dimension for pockets

Hole/slot/notch pattern tolerance - Pattern location - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainPatternLocTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainPatternLocTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Specifies tolerance type for the pattern location

Hole/slot/notch pattern tolerance - Pattern location - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainPatternLocTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainPatternLocTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

for the pattern location

Hole/slot/notch pattern tolerance - Pattern location - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainPatternLocTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainPatternLocTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for the pattern location

Hole/slot/notch pattern tolerance - Pattern location - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainPatternLocBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainPatternLocBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for the pattern location

Hole/slot/notch pattern tolerance - Distance between features -Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainInnerTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainInnerTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Specifies tolerance type for the distance between features

Hole/slot notch pattern tolerance - Distance between features - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainInnerTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainInnerTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

for the distance between features

Hole/slot notch pattern tolerance - Distance between features - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainInnerTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertChainInnerTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for the distance between features

Hole/slot notch pattern tolerance - Distance between features - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainDistanceBwtnFeatBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertChainDistanceBwtnFeatBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for the distance between features
