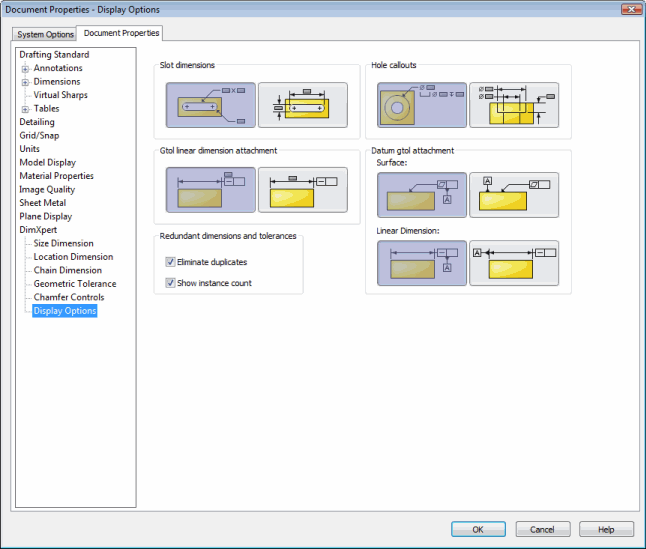

Document Properties > DimXpert > Display Options

Setting	Get/Set Methods	Return Value or <Value>	Comments
Slot dimensions - Combined or Separate	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDisplaySlotDimensionType_e, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDisplaySlotDimensionType_e, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertDisplaySlotDimensionType_e.<Value>)	See swDimXpertDisplaySlotDimensionType_e for valid options	Specifies whether the length and width dimensions applied to slots are combined as a callout or placed separately
Gtol linear dimension attachment - Combined or Separate	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDisplayGtolLinearDimAttachmentType, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDisplayGtolLinearDimAttachmentType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertDisplayGtolLinearDimAttachmentType_e.<Value>)	See swDimXpertDisplayGtolLinearDimAttachmentType_e for valid options	Specifies whether the geometric tolerance feature control frames are combined with the size limits or placed separately
Redundant dimensions and tolerances - Eliminate duplicates	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertDisplayEliminateDuplicates, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertDisplayEliminateDuplicates, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether duplicates are used
Redundant dimensions and tolerances - Show instance count	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertDisplayShowInstanceCount, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertDisplayShowInstanceCount, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether instance counts are applied
Hole callouts - Dimension type	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDisplayHoleDimensionType, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDisplayHoleDimensionType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertDisplayHoleDimensionType_e.<Value>)	See swDimXpertDisplayHoleDimensionType_e for valid options	Specifies whether hole callouts are displayed as combined or separate dimensions
Datum gtol attachment - Surface - Attached to feature control frame or Attached to surface and dimension	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDatumGtolSurfaceAttachment, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDatumGtolSurfaceAttachment, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertDisplayDatumGtolSurfaceAttachmentType_e.<Value>)	See swDimXpertDisplayDatumGtolSurfaceAttachmentType_e for valid options	Specifies whether datums are attached to the surface of the feature, to the dimension, or to the feature control frame
Linear Dimension - Attached to feature control frame or Attached to dimension	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDatumGtolLinearDimAttachment, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDatumGtolLinearDimAttachment, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertDisplayDatumGtolLinearDimAttachmentType_e.<Value>)	See swDimXpertDisplayDatumGtolLinearDimAttachmentType_e for valid options	Specifies whether datums are attached to the feature control frame or to the dimension
