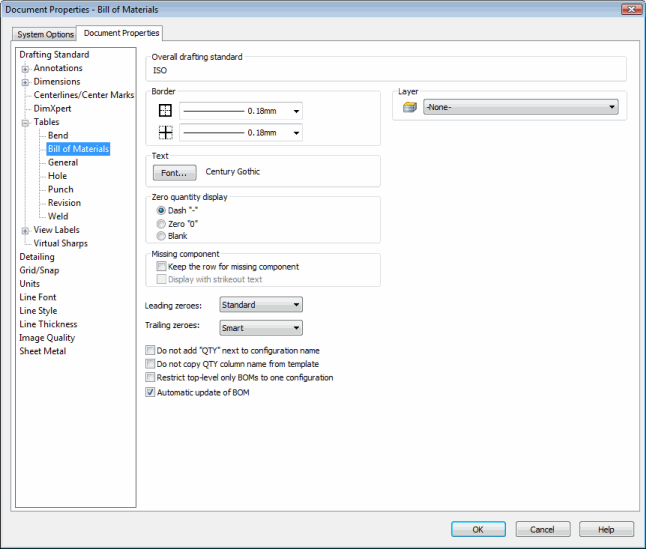

Document Properties > Tables > Bill of Materials



Setting

Get/Set Methods

Return Value or <Value>

Comments

Border - Box Border

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBillOfMaterialBorderLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBillOfMaterialBorderLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options



Border - Grid Border

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBillOfMaterialGridLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBillOfMaterialGridLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options



Text - Font...

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingBillOfMaterialTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingBillOfMaterialTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Zero quantity display

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBomTableZeroQuantityDisplay, swUserPreferenceOption_e.swDetailingBillOfMaterial)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBomTableZeroQuantityDisplay, swUserPreferenceOption_e.swDetailingBillOfMaterial, swZeroQuantityDisplay_e.<Value>)

See swZeroQuantityDisplay_e for valid options



Missing component - Keep the row for missing component

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swBomTableKeepMissingItems, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swBomTableKeepMissingItems, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to list missing (deleted) components in BOM

Missing component - Display with strikeout text

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swBomTableStrikeThroughMissingItems, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swBomTableStrikeThroughMissingItems, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to strike through text for missing components

Leading zeroes

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero, swUserPreferenceOption_e.swDetailingBillOfMaterial)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero, swUserPreferenceOption_e.swDetailingBillOfMaterial, swDetailingLeadingZero_e.<Value>)

See swDetailingLeadingZero_e for valid options



Trailing zeroes

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero, swUserPreferenceOption_e.swDetailingBillOfMaterial)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero, swUserPreferenceOption_e.swDetailingBillOfMaterial, swDetailingDimTrailingZero_e.<Value>)

See swDetailingDimTrailingZero_e for valid options



Do not add "QTY" next to configuration name

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swBomTableDontAddQTYNextToConfigName, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swBomTableDontAddQTYNextToConfigName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Do not add QTY column header name next to configuration name header

Do not copy QTY column name from template

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDontCopyQTYColumnNameFromTemplate, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDontCopyQTYColumnNameFromTemplate, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Do not copy QTY column header name from template to BOM

Restrict top-level only BOMs to one configuration

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swOneConfigOnlyTopLevelBom, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swOneConfigOnlyTopLevelBom, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to limit BOMs designated as top-level only to one configuration

Automatic update of BOM

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAutoUpdateBOM, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAutoUpdateBOM, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to automatically update BOM when changes are made to model

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingBillOfMaterial)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingBillOfMaterial, <Value>)

Valid options:

  • "Border"

  • "Dimensions"

  • "Notes"

  • "BOM"

  • "FORMAT"

  • "None"

This setting is available only on drawings; depending on drawing, some options may not apply
