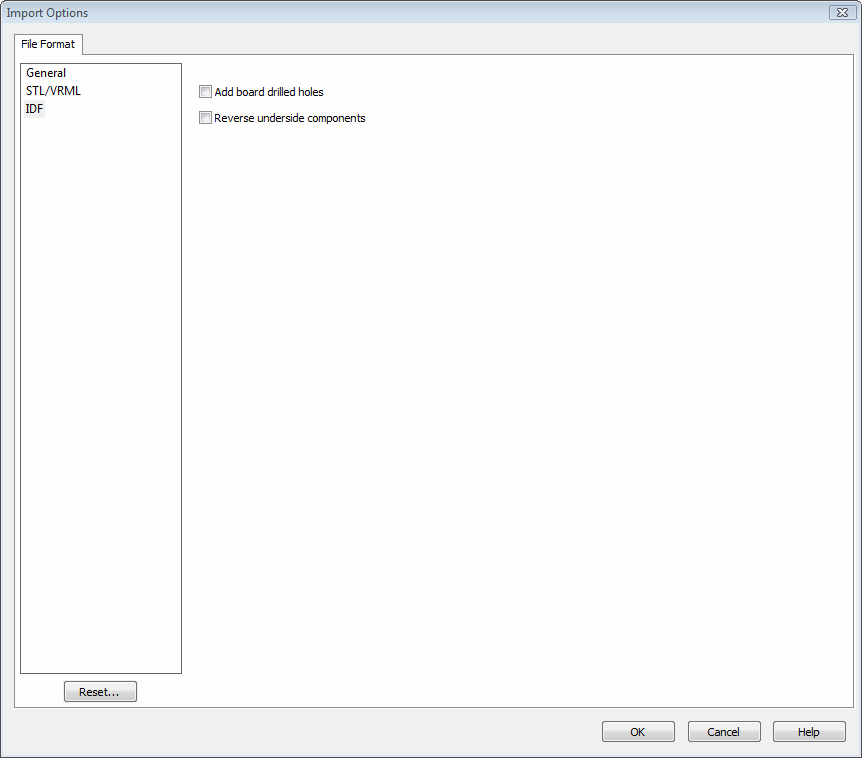

File > Open > Files of type > IDF > Options > IDF

Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Add board drilled holes

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFAddDrilledHoles)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFAddDrilledHoles. <OnFlag>)

Boolean value

Specifies whether to add drilled holes from the circuit board; for Intermediate Data Format (IDF) circuit boards files only

Reverse underside components

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFReverseUndersideComponents)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFReverseUndersideComponents. <OnFlag>)

Boolean value

Specifies whether to compensate for incorrectly rotated components by allowing proper location of the component features; for Intermediate Data Format (IDF) circuit board files only

Search 'File > Open > Files of type > IDF > Options > IDF' in the SOLIDWORKS Knowledge Base.
