Setting
Get/Set Methods
Return Value
Comment

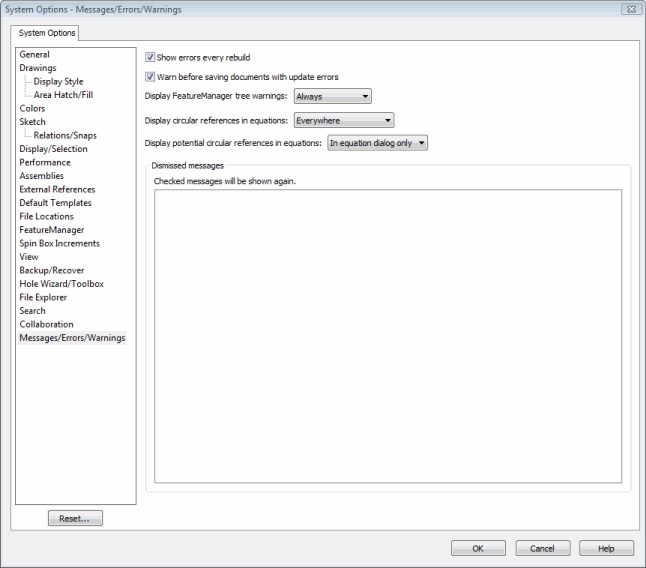

Show errors every rebuild
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swShowErrorsEveryRebuild)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swShowErrorsEveryRebuild, <OnFlag>)
Boolean value
Specifies whether to display error dialogs when rebuilding models with errors
Warn before saving documents with update errors
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWarnSaveUpdateErrors)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWarnSaveUpdateErrors, <OnFlag>)
Specifies whether to display a warning before saving documents with update errors
Display FeatureManager tree warnings
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDisplayWarnings)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDisplayWarnings, (swFeatureManagerDisplayWarnings_e.<Value>)
See swFeatureManagerDisplayWarnings_e for valid options
Display circular references in equations
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swShowEquationCircularReferencesMessage)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swShowEquationCircularReferencesMessage, (swDisplayCircularReferencesInEquations_e.<Value>)
See swDisplayCircularReferencesInEquations_e for valid options
Specifies where, or if, to display circular references in equations
Display potential circular references in equations
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swShowEquationPotentialCircularReferencesMessage)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swShowEquationPotentialCircularReferencesMessage, (swDisplayPotentialCircularReferencesInEquations_e.<Value>)
See swDisplayPotentialCircularReferencesInEquations_e for valid options
Specifies where, or if, to display potential circular references in equations
Dismissed messages - Checked message will be shown again.
See Comment
Not currently supported in SolidWorks API
