Configurations

Configurations in SolidWorks allow you to create multiple variations of a part or assembly model within a single document. Configurations are a convenient way to develop and manage families of models with different dimensions, components, or other parameters.

You can create configurations manually, or you can use a design table to create multiple configurations simultaneously. Design tables provide a convenient way to create and manage configurations in a worksheet. You can use design tables in both part and assembly documents.

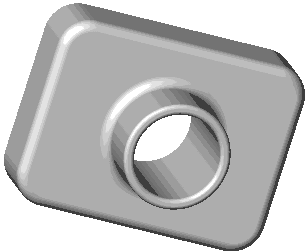

config_tutor_1.gif config_tutor_2.gif
config_tutor_3.gif config_tutor_4.gif

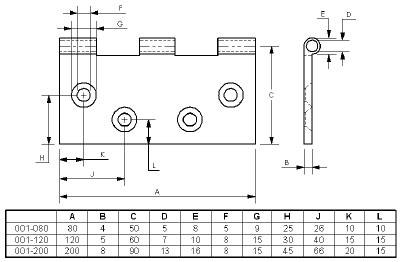

You can display design tables in drawings.
