Existing Relations
 |
Relations |
Displays relations inferenced automatically during sketching or created manually with Add Relations. When you select a relation in the list, a callout is highlighted in the graphics area. |
 |
Information |
Displays the status of the selected sketch entity (Fully Defined, Under Defined, and so on). |
Add Relations
You can add relations between spline points, between spline handles, and between spline handles and external sketch entities. Selections appear when the relevant geometry exists in the sketch.

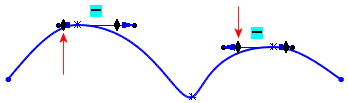

Tangency radial direction is constrained:
Options
| |
For construction |
Converts the entity to construction geometry. |
| |
Show Curvature |
Displays the Curvature Scale PropertyManager and adds curvature combs to the spline.
|
| |
Maintain Internal Continuity |
Maintains the spline's internal curvature. When Maintain Internal Continuity is cleared, the curvature scales down abruptly.
When Maintain Internal Continuity is selected, the curvature scales down gradually.
|
The following options are available only with splines that include curvature handles at each end. The default is Standard.
|
| |
Raised degree |
Raises or lowers the degree of the spline. You can also adjust the degrees by dragging the handles. |
| |
Standard |
Displays when you first create the spline or if Raised degree is cleared.
 |
 |
| Standard |
Raised degree |
|
Parameters
Specify any appropriate combination of the following parameters to define the spline if the spline is not constrained by relations.
