Center of Mass Points

You can add a Center of Mass (COM) point to parts and assemblies. In drawings of parts or assemblies that contain a COM point, you can show and reference the COM point.

You add a COM point by clicking Center of Mass Tool_Center_Of_Mass_Reference_Geometry.gif (Reference Geometry toolbar) or Insert > Reference Geometry > Center of Mass.

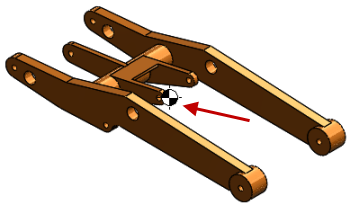

In the graphics area, center_of_mass_feature.gif appears at the center of mass of the model. In the FeatureManager design tree, Center of Mass FM_center_of_mass.gif appears just below Origin FM_origin.png.

The position of the COM point updates when the model’s center of mass changes. For example, the position of the COM point updates as you add, move, and delete features in a part.
COM_parts

You can measure distances and add reference dimensions between the COM point and entities such as vertices, edges, and faces.

You cannot create driving dimensions from the COM point. However, you can create a Center of Mass Reference (COMR) point, and use that point to define driving dimensions.

You can create Measurement sensors that reference COM and COMR points.

You can check the effect of COM and COMR points on the rebuild time of the model by clicking Tools > Feature Statistics.
