Erosion Plot

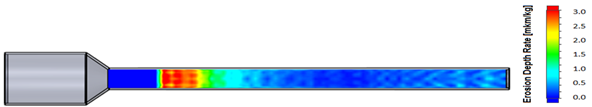

When you use the Particle Study feature, the Erosion Plot lets you visualize the distribution of the erosion accumulation rate on a surface. This is particularly useful for two-phase flow aspects in particle-wall interactions.

In addition to integral parameters for erosion and accretion of particles, SolidWorks Flow Simulation 2013 introduces local parameters of erosion and accretion, which allows for detailed quantitative and qualitative evaluations of two-phase flows, particularly in particle-wall interaction studies.
