Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

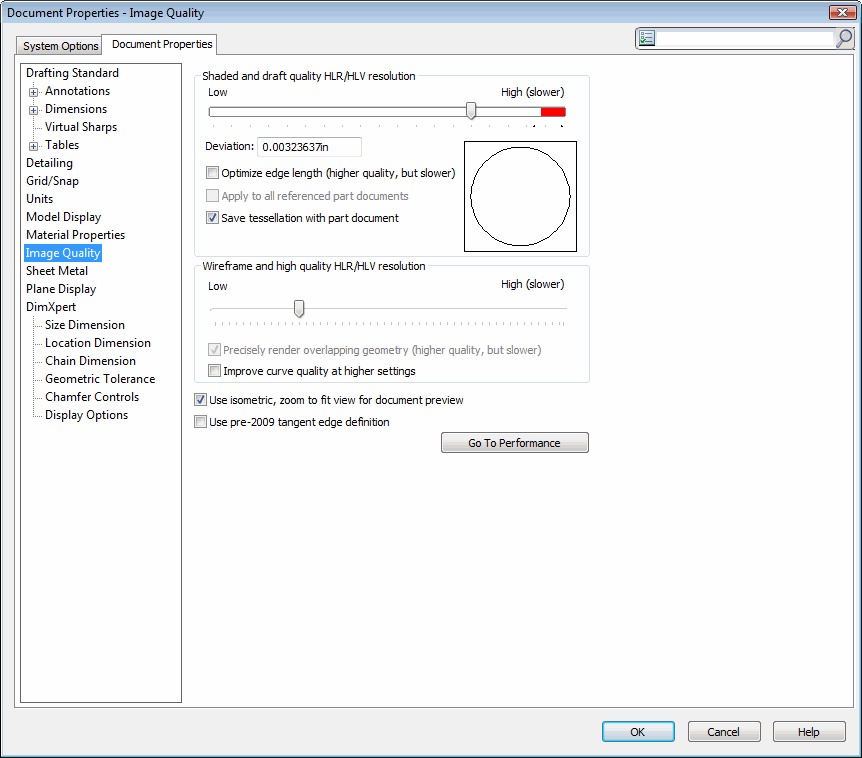

Shaded and draft quality HLR/HLV resolution - Quality |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swImageQualityShaded,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swImageQualityShaded,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swImageQualityShaded_e.<Value>) |
See swImageQualityShaded_e
for valid options |
Specifies the tessellation of cylindrical surfaces for shaded rendering
output |
|
Shaded and draft quality HLR/HLV resolution - Deviation |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swImageQualityShadedDeviation,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swImageQualityShadedDeviation,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies maximum chordal deviation in effect at the various tuning
levels; use IModelDocExtension::GetUserPreferenceDoubleValueRange
to get the current and valid minimum and maximum values |
|
Shaded and draft quality HLR/HLV resolution - Optimize edge length (higher
quality, but slower) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityUseHighQualityEdgeSize,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityUseHighQualityEdgeSize,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to increase image quality |
|
Shaded and draft quality HLR/HLV resolution - Apply to all referenced
part documents |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityApplyToAllReferencedPartDoc
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityApplyToAllReferencedPartDoc
, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
For assemblies only; specifies whether to apply image quality settings
to all part documents referenced by active document |
|
Shaded and draft quality HLR/HLV resolution - Save tessellation with
part document |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualitySaveTesselationWithPartDoc,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualitySaveTesselationWithPartDoc,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to save display information with the part document |
|
Wireframe and high quality HLR/HLV resolution - quality of wireframe
display output |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swImageQualityWireframe,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swImageQualityWireframe,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swImageQualityWireframe_e.<Value>) |
See swImageQualityWireframe_e
for valid options |
Specifies the wireframe quality: optimal
or custom |
|
Wireframe and high quality HLR/HLV resolution - wireframe quality |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swImageQualityWireframeValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swImageQualityWireframeValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (1 - 100) |
Specifies value for custom swImageQualityWireframe quality |
|
Wireframe and high quality HLR/HLV resolution - Precisely render overlapping
geometry (higher quality, but slower) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPreciseRenderingOfOverlappingGeometry,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPreciseRenderingOfOverlappingGeometry,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
For wireframes and drawings only |
|
Wireframe and high quality HLR/HLV resolution - Improve curve quality
at higher settings |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityWireframeHighCurveQuality,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityWireframeHighCurveQuality,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to improve a curve's angular tolerance at the high
end of wireframe quality resolution; for wireframe quality slider settings
between 92 and 100 |
|
Use isometric, zoom to fit view for document preview |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityZoomToFitForPreviewImages,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityZoomToFitForPreviewImages, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
For parts and assemblies only; true to save in isometric, zoom to fit
view (default); false to save in the current view |
|
Use pre-2009 tangent edge definition |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityUseOldTangentEdgeDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImageQualityUseOldTangentEdgeDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
True to leave
tangent edges visible as in the pre-2009 SolidWorks implementation; false to
hide tangent edges when the angle between adjacent faces is less than one degree |
