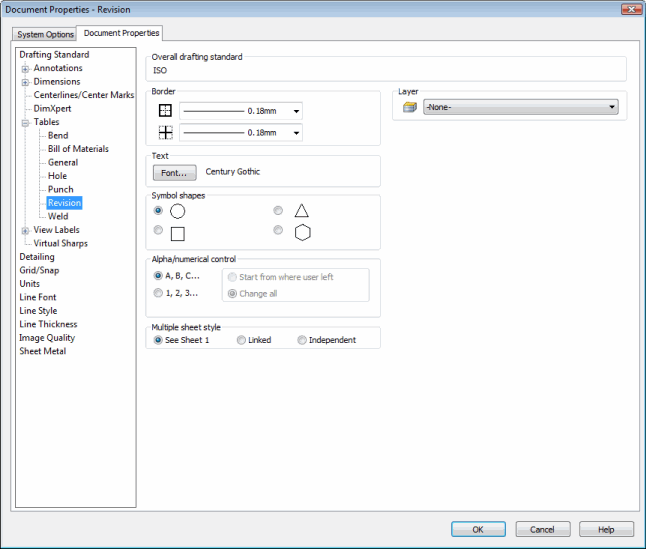

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|
Border - Box Border |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionTableBorderLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionTableBorderLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
|
|
Border - Grid Border |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionTableGridLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionTableGridLineWeight,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
|
|
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingRevisionTableTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingRevisionTableTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Symbol shapes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swRevisionTableSymbolShape,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swRevisionTableSymbolShape,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swRevisionTableSymbolShape_e.<Value>) |
See swRevisionTableSymbolShape_e
for valid options |
|
|
Alpha/numerical control |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swRevisionTableTagStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swRevisionTableTagStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swRevisionTableTagStyle_e.<Value>) |
See swRevisionTableTagStyle_e
for valid options |
|
|
Alpha/numerical control - Start from where user left or Change all |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swRevisionTableUpdateAllLabels,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swRevisionTableUpdateAllLabels,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value:
True to apply format of all revisions, previous
and future False to apply format only to revisions from now
on |
|
|
Multiple sheet style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swRevisionTableMultipleSheetStyle,
swUserPreferenceOption_e.swDetailingRevisionTable)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swRevisionTableMultipleSheetStyle,
swUserPreferenceOption_e.swDetailingRevisionTable, swRevisionTableMultipleSheetStyle_e.<Value>) |
See swRevisionTableMultipleSheetStyle_e
for valid options |
|
|
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingRevisionTable)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingRevisionTable, <Value>) |
Valid options:
"Border" "Dimensions" "Notes" "BOM" "FORMAT" -
"None"
|
This setting is available only on drawings; depending on drawing, some
options may not apply |
