Sweep PropertyManager

Set the PropertyManager options based on the type of sweep feature.

To access the PropertyManager, sketch a profile and a path to follow, then click Swept Boss/Base (Features toolbar), Swept Cut (Features toolbar), or Swept Surface (Surfaces toolbar).

Profile and Path

  Profile sweep Creates a sweep using a profile and path.
  Solid sweep (Available for cut sweeps only. Not available for assembly features.) Creates a cut-sweep using a tool body and path. The most common usage is in creating cuts around cylindrical bodies. This option would also be useful for end mill simulation.
    For cut sweeps only, when you select Solid sweep, the path must be tangent within itself (no sharp corners) and begin at a point on or within the tool body profile.
Tool body and path Cut sweep

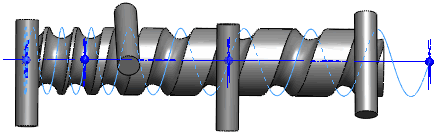

    Note how Solid sweep handles a tool body following a helix path:
    When you select Follow path for the Orientation/twist type, and None for Path alignment type, the tool body correctly follows the tangents of the helix path.

    To keep the tool body perpendicular to a reference as it follows a helix path, select Direction Vector for Path alignment type, then select a direction to which the tool body remains perpendicular, for example, the normal to the planar end face of a cylinder.

    The tool body remains parallel to the end face as it follows the helix path along the cylinder. This functionality is important for the tool machining market.

Profile Sets the sketch profile (section) used to create the sweep. Select the profile sketch in the graphics area or FeatureManager design tree. The profile must be closed for a base or boss sweep feature. The profile may be open or closed for a surface sweep feature.
Tool body (solid cut sweeps only) The tool body must be convex, not merged with the main body, and consist of one of the following:
  • A revolved feature that consists of analytical geometry only, such as lines and arcs.
  • A cylindrical extruded feature.
Path Sets the path along which the profile sweeps. Select the path sketch in the graphics area or FeatureManager design tree. The path can be open or closed, and can be a set of sketched curves contained in one sketch, a curve, or a set of model edges. The start point of the path must lie on the plane of the profile.

Neither the section, the path, nor the resulting solid can be self-intersecting.

Options

  Orientation/twist type Controls the orientation of the Profile as it sweeps along the Path . Options are:


Follow Path

Section remains at same angle with respect to path at all times.

When you select Follow Path, options stabilize the profiles when small and uneven curvature fluctuations along the path cause the profiles to misalign.

Keep normal constant

Section remains parallel to the beginning section at all times.

Follow path and 1st guide curve

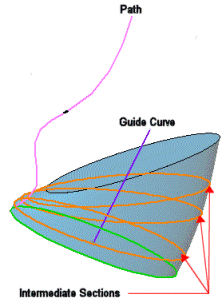

Select Follow path and 1st guide curve and the twist of the intermediate sections is determined by the vector from the path to the first guide curve. The angle between the horizontal plane and the vector remains constant in the sketch planes of all of the intermediate sections.

Follow 1st and 2nd guide curves



Select Follow 1st and 2nd guide curves and the twist of the intermediate section is determined by the vector from the first to the second guide curve. The angle between the horizontal plane and the vector remains constant in the sketch planes of all of the intermediate sections.

Twist Along Path

Twists the section along the path. Define the twist by degrees, radians, or turns under Define by.



This example shows one turn.

Twist Along Path With Normal Constant

Twists the section along the path, keeping the section parallel to the beginning section as it twists along the path.



This example shows one turn.

  Define by (Available with Twist Along Path or Twist Along Path With Normal Constant selected in Orientation/twist type). Select one of the following:

Twist definition

Define the twist. Select Degrees, Radians, or Turns.

Twist angle

Sets the number of degrees, radians, or turns in the twist.

  Path alignment type (Available with Follow Path selected in Orientation/twist type) Stabilizes the profile when small and uneven curvature fluctuations along the path cause the profile to misalign. Options are:


None

Aligns the profile normal to the path. No correction is applied.

Minimum Twist

(For 3D paths only). Prevents the profile from becoming self-intersecting as it follows the path.

Direction Vector

Aligns the profile in the direction selected for Direction Vector. Select entities to set the direction vector.

All Faces

When the path includes adjacent faces, makes the sweep profile tangent to the adjacent face where geometrically possible.

Direction Vector (Available with Direction Vector selected in Path alignment type) Select a plane, planar face, line, edge, cylinder, axis, a pair of vertices on a feature, and so on to set the direction vector.
  Merge tangent faces If the sweep profile has tangent segments, causes the corresponding surfaces in the resulting sweep to be tangent. Faces that can be represented as a plane, cylinder, or cone are maintained. Other adjacent faces are merged, and the profiles are approximated. Sketch arcs may be converted to splines.
  Show preview Displays a shaded preview of the sweep. Clear to display only the profile and path.
  Merge result Merges the solids into one body.
  Align with end faces Continues the sweep profile up to the last face encountered by the path. The faces of the sweep are extended or truncated to match the faces at the ends of the sweep without requiring additional geometry. This option is commonly used with helices.


Align with end faces selected Align with end faces cleared
Top of helix Top of helix
Bottom of helix Bottom of helix

Guide Curves

Guide Curves Guides the profile as it sweeps along the path. Select guide curves in the graphics area.

The guide curve must be coincident with the profile or with a point in the profile sketch.
Move Up and Move Down Adjusts the order of the guide curves. Select a Guide Curve and adjust the profile order.
  Merge smooth faces Clear to improve performance of sweeps with guide curves and to segment the sweep at all points where the guide curve or path is not curvature continuous. Consequently, the lines and arcs in the guide curves are more accurately matched.

Merge smooth faces selected Merge smooth faces cleared
When you clear Merge smooth faces, the potential exists that some features created later might fail due to the changed geometry.
Show Sections Displays the sections of the sweep. Select the arrows to view and troubleshoot the profile by Section Number.


Start/End Tangency

Start tangency type and End tangency type.

None No tangency is applied.
Path Tangent Create the sweep normal to the path at the start.

Thin Feature

Select to create a thin feature sweep.

Sweep with solid feature Sweep with thin feature
Thin feature type Sets the type of thin feature sweep. The options are:

One-Direction

Creates the thin feature in one direction from the profiles using the Thickness value. If necessary, click Reverse Direction .

Mid-Plane

Creates the thin feature in both directions from the profiles, applying the same Thickness value in both directions.

Two-Direction

Creates the thin feature in both directions from the profiles. Set individual values for Thickness and Thickness .

Feature Scope

Specifies which bodies or components you want the feature to affect.
  • For multibody parts, see Feature Scope in Multibody Parts.
  • For assemblies, see Feature Scope in Assemblies.
