These options define the tolerance type and values to apply to newly created size dimensions, including dimensions created with the Size Dimension
and Auto Dimension Scheme
tools.
These options do not affect pre-existing features, dimensions, or tolerances.
Size dimension options are:

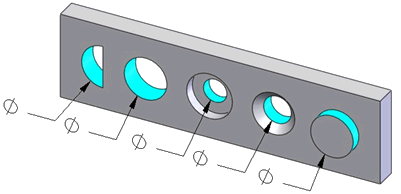

| Diameter (boss, cylinder, counterbore hole, countersink hole, and simple hole) |
 |
| Counterbore diameter (counterbore portion of counterbore hole) |
 |
| Countersink diameter
|
 |
| Countersink angle
|
 |

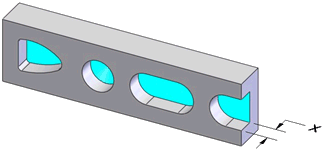

| Length - slot/notch
|
 |
| Width - slot/notch/width
|
 |
| Depth (counterbore, counterbore hole, countersink, notch, pocket, simple hole, slot) |
 |
| Fillet radius
|
 |
| Chamfer
|
 |
| Intersect circle
|
 |
Tolerance Type Options
| Symmetric |
Value is interpreted as plus and minus
|
| Bilateral |
Values are added or subtracted from the feature's nominal size
|
| Block |
Number of decimal places
|
| General |
|
Block or General appears based on whether you select Block Tolerance or General Tolerance for the DimXpert Method. See .
