Bend Tables

You can insert a bend table in the flat pattern view of sheet metal parts in drawings.

Bend tables provide information about the bends in the sheet metal body including:

Tags
Directions
Angles
Inner radii

You can use bend tables or bend notes, but not both.

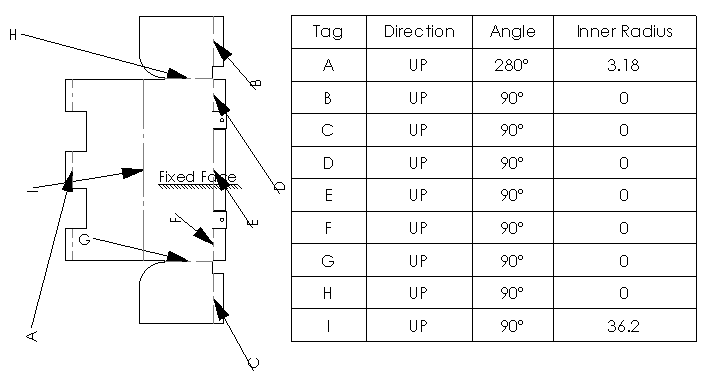

Bend Table

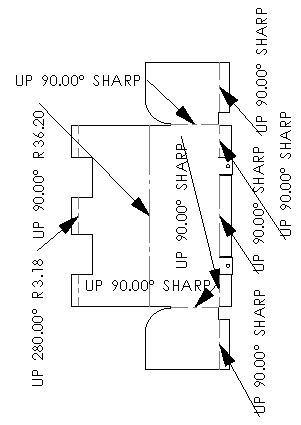

Bend Notes

Contents

Setting Bend Table Properties
Inserting Bend Tables
Modifying Columns in Bend Tables
Bend Table PropertyManager

Specify properties for bend tables in drawings.

Parent topic

Tables

Related concepts

Sheet Metal Bend Line Notes

Bend Table

Search 'Bend Tables' in the SOLIDWORKS Knowledge Base.
