Revision Cloud

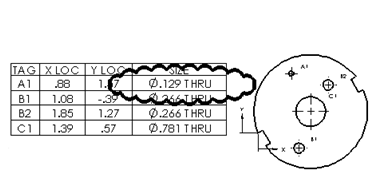

Revision cloud is an annotation type that lets you create cloud-like shapes in a drawing.

Use revision clouds to call attention to geometry changes. You can insert revision clouds in drawing views or on the drawing sheet.




Revision Cloud Shapes

Shape Icon
Rectangle Revision_Cloud_Rectangle.png
Ellipse Revision_Cloud_Ellipse.png
Irregular Polygon Revision_Cloud_Irregular_Polygon.png
Freehand Revision_Cloud_Freehand.png
