Editing the Origin Datum

Do one of the following:
- Select an axis in the graphics area, then click Edit datum definition in the Hole table axis PropertyManager.
- Right-click the hole table in the FeatureManager design tree and select Edit Feature.

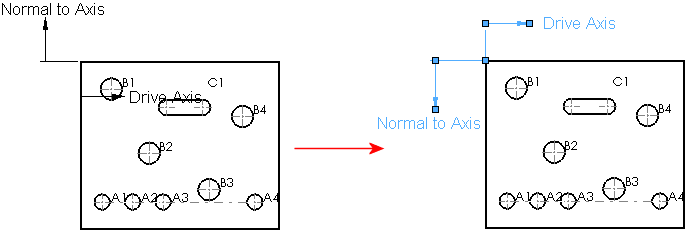

In the graphics area, select a vertex or X and Y axes.
Click .
The X LOC and Y LOC columns update accordingly.
Resize and reposition the coordinate markers by dragging them.

Parent topic

Hole Tables
