Prismatic
|

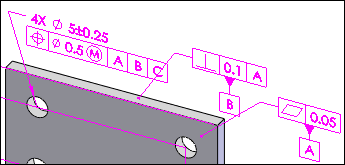

When used with Geometric as Tolerance type, DimXpert applies position tolerances to locate holes and bosses.
For annotation views, size dimensions appear as callouts with open leaders
Note the difference in the geometric tolerances applied to the 30mm boss, and the annotation view used to depict them.
|
Turned
|
When used with Geometric as Tolerance type, DimXpert applies circular runout tolerances to locate holes and bosses.
For annotation views, size dimensions appear as linear dimensions, parallel to the axis.
|
