Select Other

Selects entities that are hidden by other entities.

To select hidden items:

  1. In a part or assembly document, right-click the model in the graphics area and choose Select Other menu_Select_Other.gif.

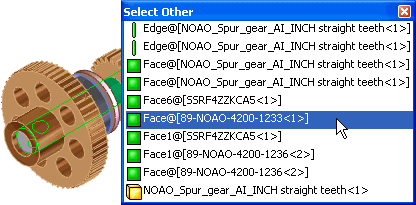

    • The pointer changes to pointer_Select_Other.gif and a box appears with a list of entities (faces, edges, subassemblies, etc.) that lie beneath the pointer, in the order in which they are encountered. An icon displays the type of entity (face, edge, etc.).
    • Hover the pointer over items in the list to highlight them in the graphics area.
    • To scroll through the list, press Tab or roll the middle mouse button.
    • You can right-click on the model to hide faces, revealing other hidden faces and edges.
  2. Click in the list or the graphics area to select an entity.
