Access Check-in Flags in Check in Dialog Example (C#)
This example shows how to access the check-in flags in the
SolidWorks Enterprise PDM Check in dialog.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//--------------------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual C# > Windows Forms Application.
// b. Type RefItemContainerCSharp in Name.
// c. Click Browse and navigate to the folder where to create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form, replace the code in Form1.Designer.cs with
// this code.
// h. To create the class for the callback:
// 1. Right-click RefItemContainerCSharp in the Solution Explorer.
// 2. Click Add > Class.
// 3. Type Callback.cs in Name and click Add.
// 4. Replace the code in Callback.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SolidWorks Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 4. Click Debug > Start Debugging or press F5.
//
// Postconditions:

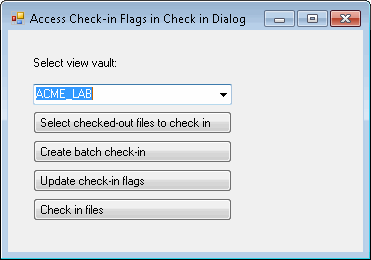

// 1. Displays the Access Check-in Flags in Check in Dialog dialog box.
// 2. Select a vault view.
// 3. Click Select checked-out files to check in.
// a. Displays the Select files dialog box.
// b. Click one or more checked-out files to check in.
// c. Click Open.
// 4. Click Create batch check-in.
// a. At the end of an attempted check-in, displays three message
// boxes containing ProgressEnd called. Three operations occur for an
// attempted check-in.
// b. Click OK to close each message box.
// c. Displays either:
// * Message box containing Batch check-in created. Click OK to
// close the message box.
// - or -
// * Message box containing You did not select a file to check in. Please try
// again. Click OK to close the message box, and repeat steps 3 and 4.
// 5. Click Update check-in flags.
// 6. Click OK to close the message box.
// 7. Click Check in files.
// 8. Displays the Check in dialog box.
// 9. Click Check in to check in the files or Cancel to cancel the check in.
// 10. Displays a message box containing ProgressEnd called. Click OK to close
// the message box.
// 11. Examine the files in the vault to verify their checked-in or checked-out status.
// 12. Close the Access Check-in Flags in Check in Dialog dialog box.
//--------------------------------------------------------------------------------------
//Form1.cs
using System;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace RefItemContainerCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
IEdmVault5 vault1 = null;
IEdmVault8 vault = null;
EdmSelItem[] selFiles = null;
IEdmBatchUnlock bUnlock = null;
void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
vault1 = new EdmVault5();
vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = { };
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void BrowseButton_Click(object sender, EventArgs e)
{
try
{
//Only create a new vault object
//if one hasn't been created yet
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Display the Select file dialog for user to
//select the files
EdmStrLst5 pathList = default(EdmStrLst5);
pathList = vault.BrowseForFile(this.Handle.ToInt32(),
(int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitMultipleSel +
(int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "SolidWorks files " +
"(*.sldprt; *.sldasm; *.slddrw)|" + "*.sldprt;*.sldasm;*.slddrw|" + "All Files (*.*)|*.*||", "",
"", vault.RootFolderPath, "Select files");
//Exit if the user clicks Cancel
if (pathList == null)
return;
//Traverse the selected files
IEdmPos5 pos = default(IEdmPos5);
pos = pathList.GetHeadPosition();
//Convert the selected files to an
//array of EdmSelItem structs
int nbrFiles = 0;
nbrFiles = pathList.Count;
Array.Resize(ref selFiles, nbrFiles);
int i = 0;
while (!pos.IsNull)
{
//Get each file path from the selected files list
string filePath = null;
IEdmFile5 file = default(IEdmFile5);
IEdmFolder5 retFolder = default(IEdmFolder5);
filePath = pathList.GetNext(pos);
file = vault.GetFileFromPath(filePath, out retFolder);
selFiles[i].mlDocID = file.ID;
selFiles[i].mlProjID = retFolder.ID;
i = i + 1;
}
}catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void CreateBatchCheckinButton_Click(object sender, EventArgs e)
{
try
{
//Only create a new vault object
//if one hasn't been created yet
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmVault7 vault2 = (IEdmVault7)vault1;
bUnlock = (IEdmBatchUnlock)vault2.CreateUtility(EdmUtility.EdmUtil_BatchUnlock);
bUnlock.AddSelection((EdmVault5)vault1, ref selFiles);
bool tree = false;
Callback myCallback = new Callback();
tree = bUnlock.CreateTree(this.Handle.ToInt32(), (int)EdmUnlockBuildTreeFlags.Eubtf_MayUnlock, myCallback);
if (tree == false)
{
MessageBox.Show("You did not select a file to check in. Please try again.");
return;
}
MessageBox.Show("Batch check in created.");
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void UpdateBatchCheckInButton_Click(object sender, EventArgs e)
{
try
{
//Only create a new vault object
//if one hasn't been created yet
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmRefItemContainer container = null;
container = (IEdmRefItemContainer)bUnlock;
object[] items = null;
IEdmRefItem theItem = null;
container.GetItems(EdmRefItemType.Edmrit_All, out items);
int j = 0;
while (j < items.Length)
{
IEdmRefItem aItem = null;
theItem = (IEdmRefItem)items[j];
aItem = theItem;
object value = null;
aItem.SetProperty(EdmRefItemProperty.Edmrip_CheckKeepLocked, value);
j = j + 1;
}
MessageBox.Show("Check-in flags updated.");
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void CheckInButton_Click(object sender, EventArgs e)
{
try
{
//Only create a new vault object
//if one hasn't been created yet
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
if (bUnlock.ShowDlg(this.Handle.ToInt32()))
{
Callback myCallback = new Callback();
bUnlock.UnlockFiles(this.Handle.ToInt32(), myCallback);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
namespace RefItemContainerCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.CreateBatchCheckinButton = new System.Windows.Forms.Button();
this.UpdateBatchCheckInButton = new System.Windows.Forms.Button();
this.CheckInButton = new System.Windows.Forms.Button();
this.BrowseButton = new System.Windows.Forms.Button();
this.SuspendLayout();
//
// VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(24, 29);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(27, 45);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(187, 21);
this.VaultsComboBox.TabIndex = 1;
//
// CreateBatchCheckinButton
//
this.CreateBatchCheckinButton.Location = new System.Drawing.Point(27, 122);
this.CreateBatchCheckinButton.Name = "CreateBatchCheckinButton";
this.CreateBatchCheckinButton.Size = new System.Drawing.Size(125, 23);
this.CreateBatchCheckinButton.TabIndex = 4;
this.CreateBatchCheckinButton.Text = "Create batch check-in";
this.CreateBatchCheckinButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.CreateBatchCheckinButton.UseVisualStyleBackColor = true;
this.CreateBatchCheckinButton.Click += new System.EventHandler(this.CreateBatchCheckinButton_Click);
//
// UpdateBatchCheckInButton
//
this.UpdateBatchCheckInButton.Location = new System.Drawing.Point(27, 164);
this.UpdateBatchCheckInButton.Name = "UpdateBatchCheckInButton";
this.UpdateBatchCheckInButton.Size = new System.Drawing.Size(125, 23);
this.UpdateBatchCheckInButton.TabIndex = 5;
this.UpdateBatchCheckInButton.Text = "Update check-in flags";
this.UpdateBatchCheckInButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.UpdateBatchCheckInButton.UseVisualStyleBackColor = true;
this.UpdateBatchCheckInButton.Click += new System.EventHandler(this.UpdateBatchCheckInButton_Click);
//
// CheckInButton
//
this.CheckInButton.Location = new System.Drawing.Point(27, 209);
this.CheckInButton.Name = "CheckInButton";
this.CheckInButton.Size = new System.Drawing.Size(125, 23);
this.CheckInButton.TabIndex = 6;
this.CheckInButton.Text = "Check in files";
this.CheckInButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.CheckInButton.UseVisualStyleBackColor = true;
this.CheckInButton.Click += new System.EventHandler(this.CheckInButton_Click);
//
// BrowseButton
//
this.BrowseButton.Location = new System.Drawing.Point(27, 82);
this.BrowseButton.Name = "BrowseButton";
this.BrowseButton.Size = new System.Drawing.Size(125, 23);
this.BrowseButton.TabIndex = 7;
this.BrowseButton.Text = "Select checked-out files to check in";
this.BrowseButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.BrowseButton.UseVisualStyleBackColor = true;
this.BrowseButton.Click += new System.EventHandler(this.BrowseButton_Click);
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(384, 254);
this.Controls.Add(this.BrowseButton);
this.Controls.Add(this.CheckInButton);
this.Controls.Add(this.UpdateBatchCheckInButton);
this.Controls.Add(this.CreateBatchCheckinButton);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Access Check-in Flags in Check in Dialog";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
private System.Windows.Forms.Label VaultsLabel;
private System.Windows.Forms.ComboBox VaultsComboBox;
private System.Windows.Forms.Button CreateBatchCheckinButton;
private System.Windows.Forms.Button UpdateBatchCheckInButton;
private System.Windows.Forms.Button CheckInButton;
private System.Windows.Forms.Button BrowseButton;
}
}
using EPDM.Interop.epdm;
using System.Windows.Forms;
namespace RefItemContainerCSharp
{
class Callback : IEdmUnlockOpCallback
{
#region IEdmUnlockOpCallback Members
public EdmUnlockOpReply MsgBox(EdmUnlockOpMsg mssge, int docId, int projID, string path, ref EdmUnlockErrInfo err)
{
return EdmUnlockOpReply.Euor_OK;
}
public void ProgressBegin(EdmProgressType type, EdmUnlockEvent events, int steps)
{
return;
}
public void ProgressEnd(EdmProgressType type)
{
//Demonstrates callback
MessageBox.Show("ProgressEnd called.");
return;
}
public bool ProgressStep(EdmProgressType type, string msgText, int progressPos)
{
return true;
}
public bool ProgressStepEvent(EdmProgressType type, EdmUnlockEventMsg opText, int progressPos)
{
return true;
}
#endregion
}
}
