Add Items Example (C#)
This example shows how to add items to a vault. The data
for the items is imported from an XML file, which is read by the .NET XmlReader.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Create an XML file for this example.
// a. Open a text editor like Notepad and copy and paste this code
// into the editor.
// b. Save the file as Items.xml and remember where you save the file.
// 2. Open the SolidWorks Enterprise PDM Administration tool.
// 3. Log into the vault where to add a new serial number.
// a. Right-click Serial Numbers and click New Serial Number.
// 1. Type AddItems in Name.
// 2. For Format string, click the right-arrow button and select Counter value > 00001.
// 3. Click OK.
// b. Right-click Items and select Open.
// 1. Click AddItems in Item Serial Number.
// 2. Click OK.
// 4. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > C# > Windows Forms Application.
// b. Type AddItems in Name.
// c. Click the Browse button and browse to the folder where to create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar.

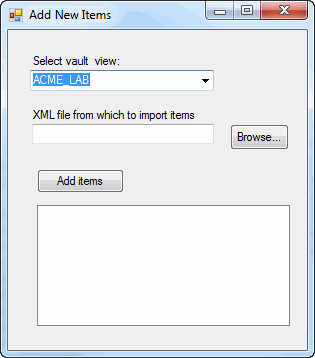

// f. Create a form similar to the form shown above and change:
// 1. Top label to VaultsLabel.
// 2. Combo box to VaultsComboBox.
// 3. Second label to XmlLabel.
// 4. Text box to XmlTextBox.
// 5. Browse button to BrowseButton.
// 6. Add items button to AddItemsButton.
// 7. List box to ItemsListBox.
// g. Replace the code in Form1.cs with this code.
// h. Replace the code in Form1.Designer.cs with this code.
// i. Right-click the AddItemsCSharp project name in the Solution Explorer.
// 1. Click Add > Class > Class.
// 2. Type EdmVaultSingleton.cs in Name.
// 3. Click Add.
// 4. Replace the code in EdmVaultSingleton.cs with this code.
// j. Right-click the AddItems project name in the Solution Explorer.
// 1. Click Add > Class > Class.
// 2. Type NewItem.cs in Name.
// 3. Click Add.
// 4. Replace the code in NewItem.cs with this code.
// 5. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of your
// SolidWorks Enterprise PDM installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 6. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 7. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1. Displays a dialog.
// 2. Select a vault.
// 3. Click the Browse button, locate and select Items.xml, and click Open.
// 4. Click the Add items button.
// The new items are printed in the dialog's list.
// 5. Close the dialog.
// 6. Open the SolidWorks Enterprise PDM Item Explorer tool.
// (In Windows 7, click Start > All Programs > SolidWorks Enterprise PDM >
// Item Explorer.)
// 7. Expand the vault where the new items were added.
// The new items are listed below the name of the expanded vault.
//----------------------------------------------------------------------------
<?xml version="1.0" encoding="utf-8"?>
<ArrayOfAnyType xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<anyType xsi:type="Item">
<Description>First Item</Description>
<ProjectName>Project 1</ProjectName>
<ProjectNumber>1</ProjectNumber>
<PartType>Purchased</PartType>
<ItemName>Item 1</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Second Item</Description>
<ProjectName>Project 2</ProjectName>
<ProjectNumber>2</ProjectNumber>
<PartType>Built</PartType>
<ItemName>Item 2</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Third Item</Description>
<ProjectName>Project 3</ProjectName>
<ProjectNumber>3</ProjectNumber>
<PartType>Purchased</PartType>
<ItemName>Item 3</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Fourth Item</Description>
<ProjectName>Project 4</ProjectName>
<ProjectNumber>4</ProjectNumber>
<PartType>Built</PartType>
<ItemName>Item 4</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Fifth Item</Description>
<ProjectName>Project 5</ProjectName>
<ProjectNumber>5</ProjectNumber>
<PartType>Purchased</PartType>
<ItemName>Item 5</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Sixth Item</Description>
<ProjectName>Project 6</ProjectName>
<ProjectNumber>6</ProjectNumber>
<PartType>Built</PartType>
<ItemName>Item 6</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Seventh Item</Description>
<ProjectName>Project 7</ProjectName>
<ProjectNumber>7</ProjectNumber>
<PartType>Purchased</PartType>
<ItemName>Item 7</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Eighth Item</Description>
<ProjectName>Project 8</ProjectName>
<ProjectNumber>8</ProjectNumber>
<PartType>Built</PartType>
<ItemName>Item 8</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Ninth Item</Description>
<ProjectName>Project 9</ProjectName>
<ProjectNumber>9</ProjectNumber>
<PartType>Purchased</PartType>
<ItemName>Item 9</ItemName>
</anyType>
<anyType xsi:type="Item">
<Description>Tenth Item</Description>
<ProjectName>Project 10</ProjectName>
<ProjectNumber>10</ProjectNumber>
<PartType>Built</PartType>
<ItemName>Item 10</ItemName>
</anyType>
</ArrayOfAnyType>
//Form1.cs
using System;
using System.IO;
using EPDM.Interop.epdm;
using System.Collections;
using System.Diagnostics;
using System.Runtime.InteropServices;
using System.Windows.Forms;
namespace AddItemsCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
void BrowseButton_Click(System.Object sender, System.EventArgs e)
{
try
{
DialogResult dlgResult = XmlOpenFileDialog.ShowDialog();
if (dlgResult == DialogResult.Cancel)
{
return;
}
XmlTextBox.Text = XmlOpenFileDialog.FileName;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void AddItemsButton_Click(System.Object sender, System.EventArgs e)
{
try
{
ItemsListBox.Items.Clear();
ArrayList NewItems = new ArrayList();
using (System.Xml.XmlReader XmlReader = System.Xml.XmlReader.Create(XmlTextBox.Text))
{
XmlReader.Read();
XmlReader.ReadToNextSibling("ArrayOfAnyType");
XmlReader.ReadToDescendant("anyType");
do
{
NewItem CurItem = new NewItem();
XmlReader.ReadToDescendant("Description");
CurItem.Description = XmlReader.ReadString();
XmlReader.ReadToNextSibling("ProjectName");
CurItem.ProjectName = XmlReader.ReadString();
XmlReader.ReadToNextSibling("ProjectNumber");
CurItem.ProjectNumber = XmlReader.ReadString();
XmlReader.ReadToNextSibling("PartType");
CurItem.PartType = XmlReader.ReadString();
XmlReader.ReadToNextSibling("ItemName");
CurItem.ItemName = XmlReader.ReadString();
NewItems.Add(CurItem);
} while (XmlReader.ReadToFollowing("anyType"));
}
//Obtain the only instance of the IEdmVault5 object
IEdmVault5 vault = EdmVaultSingleton.Instance;
if (!vault.IsLoggedIn)
{
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Create the batch interface
IEdmBatchItemGeneration2 BatchItemGen = default(IEdmBatchItemGeneration2);
IEdmVault7 vault1 = (IEdmVault7)vault;
BatchItemGen = (IEdmBatchItemGeneration2)vault1.CreateUtility(EdmUtility.EdmUtil_BatchItemGeneration);
EdmVarVal[] VarVals = new EdmVarVal[4];
VarVals[0].mlEdmVarValFlags = 0;
VarVals[0].moVarIDorName = "Description";
VarVals[1].mlEdmVarValFlags = 0;
VarVals[1].moVarIDorName = "Project Name";
VarVals[2].mlEdmVarValFlags = 0;
VarVals[2].moVarIDorName = "Project number";
VarVals[3].mlEdmVarValFlags = 0;
VarVals[3].moVarIDorName = "Part Type";
for (int i = 0; i <= NewItems.Count - 1; i++)
{
VarVals[0].moValue = (NewItems[i] as NewItem).Description;
VarVals[1].moValue = (NewItems[i] as NewItem).ProjectName;
VarVals[2].moValue = (NewItems[i] as NewItem).ProjectNumber;
VarVals[3].moValue = (NewItems[i] as NewItem).PartType;
BatchItemGen.AddSelection2((EdmVault5)vault, VarVals, ((NewItems[i] as NewItem).ItemName),0, 0, 0,"", (int)EdmRefFlags.EdmRef_Dynamic);
}
//Build the item tree
bool CreateSuccess = false;
CreateSuccess = BatchItemGen.CreateTree(((int)(this.Handle.ToInt32())), (int)EdmItemGenerationFlags.Eigcf_Nothing);
if ((CreateSuccess == false))
return;
//Generate the items
EdmGenItemInfo[] ReturnedItems = null;
bool bOpenExplorer = false;
BatchItemGen.GenerateItems(this.Handle.ToInt32(), out ReturnedItems, out bOpenExplorer, null);
//Display the new item information in the list box
string msg = "";
if (ReturnedItems.Length == 0)
{
msg = "No items were added.";
ItemsListBox.Items.Add("No items were added.");
}
else
{
foreach (EdmGenItemInfo ItemInfo in ReturnedItems)
{
ItemsListBox.Items.Add("Item name: " + ItemInfo.mbsItemName);
ItemsListBox.Items.Add("Alternate name: " + ItemInfo.mbsItemAlternativeName);
IEdmVault11 vault2 = (IEdmVault11)vault;
ItemsListBox.Items.Add("Status: " + vault2.GetErrorMessage(ItemInfo.mhResult));
ItemsListBox.Items.Add("");
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void AddItems_Load(System.Object sender, System.EventArgs e)
{
try
{
//Obtain the only instance of the IEdmVault object
IEdmVault8 vault = (IEdmVault8)EdmVaultSingleton.Instance;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
//Form1.Designer.cs
namespace AddItemsCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.XmlLabel = new System.Windows.Forms.Label();
this.XmlTextBox = new System.Windows.Forms.TextBox();
this.BrowseButton = new System.Windows.Forms.Button();
this.AddItemsButton = new System.Windows.Forms.Button();
this.ItemsListBox = new System.Windows.Forms.ListBox();
this.XmlOpenFileDialog = new System.Windows.Forms.OpenFileDialog();
this.SuspendLayout();
//
//XmlOpenFileDialog
//
this.XmlOpenFileDialog.Filter = "XML files|*.XML";
//
// VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(22, 22);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(25, 38);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(174, 21);
this.VaultsComboBox.TabIndex = 1;
//
// XmlLabel
//
this.XmlLabel.AutoSize = true;
this.XmlLabel.Location = new System.Drawing.Point(25, 91);
this.XmlLabel.Name = "XmlLabel";
this.XmlLabel.Size = new System.Drawing.Size(172, 13);
this.XmlLabel.TabIndex = 2;
this.XmlLabel.Text = "XML file from which to import items:";
//
// XmlTextBox
//
this.XmlTextBox.Location = new System.Drawing.Point(28, 107);
this.XmlTextBox.Name = "XmlTextBox";
this.XmlTextBox.Size = new System.Drawing.Size(171, 20);
this.XmlTextBox.TabIndex = 3;
//
// BrowseButton
//
this.BrowseButton.Location = new System.Drawing.Point(216, 107);
this.BrowseButton.Name = "BrowseButton";
this.BrowseButton.Size = new System.Drawing.Size(75, 23);
this.BrowseButton.TabIndex = 4;
this.BrowseButton.Text = "Browse...";
this.BrowseButton.UseVisualStyleBackColor = true;
this.BrowseButton.Click += new System.EventHandler(this.BrowseButton_Click);
//
// AddItemsButton
//
this.AddItemsButton.Location = new System.Drawing.Point(28, 149);
this.AddItemsButton.Name = "AddItemsButton";
this.AddItemsButton.Size = new System.Drawing.Size(75, 23);
this.AddItemsButton.TabIndex = 5;
this.AddItemsButton.Text = "Add items";
this.AddItemsButton.UseVisualStyleBackColor = true;
this.AddItemsButton.Click += new System.EventHandler(this.AddItemsButton_Click);
//
// ItemListBox
//
this.ItemsListBox.FormattingEnabled = true;
this.ItemsListBox.Location = new System.Drawing.Point(28, 196);
this.ItemsListBox.Name = "ItemsListBox";
this.ItemsListBox.Size = new System.Drawing.Size(263, 95);
this.ItemsListBox.TabIndex = 6;
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(334, 311);
this.Controls.Add(this.ItemsListBox);
this.Controls.Add(this.AddItemsButton);
this.Controls.Add(this.BrowseButton);
this.Controls.Add(this.XmlTextBox);
this.Controls.Add(this.XmlLabel);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Add new items";
this.Load += new System.EventHandler(this.AddItems_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
private System.Windows.Forms.Label VaultsLabel;
private System.Windows.Forms.ComboBox VaultsComboBox;
private System.Windows.Forms.Label XmlLabel;
private System.Windows.Forms.TextBox XmlTextBox;
private System.Windows.Forms.Button BrowseButton;
private System.Windows.Forms.Button AddItemsButton;
private System.Windows.Forms.ListBox ItemsListBox;
private System.Windows.Forms.OpenFileDialog XmlOpenFileDialog;
}
}
//EdmVaultSingleton.cs
using System;
using System.Collections;
using System.Diagnostics;
using System.Threading;
using EPDM.Interop.epdm;
namespace AddItemsCSharp
{
public class EdmVaultSingleton
{
private static EdmVault5 mInstance = null;
private static object mLockObj = new object();
private EdmVaultSingleton()
{
}
public static EdmVault5 Instance
{
get
{
try
{
if (mInstance == null)
{
Monitor.Enter(mLockObj);
if (mInstance == null)
{
mInstance = new EdmVault5();
}
Monitor.Exit(mLockObj);
}
}
catch (Exception ex)
{
Monitor.Exit(mLockObj);
}
return mInstance;
}
}
}
}
//NewItem.cs
using System;
using System.Collections;
using System.Diagnostics;
namespace AddItemsCSharp
{
public class NewItem
{
//Value of "Description" variable
private string mDescription;
//Value of "Project Name" variable
private string mProjectName;
//Value of "Project number" variable
private string mProjectNumber;
//Value of "Part Type" variable
private string mPartType;
//Item name
private string mItemName;
public NewItem()
{
}
public string Description
{
get { return mDescription; }
set { mDescription = value; }
}
public string ProjectName
{
get { return mProjectName; }
set { mProjectName = value; }
}
public string ProjectNumber
{
get { return mProjectNumber; }
set { mProjectNumber = value; }
}
public string PartType
{
get { return mPartType; }
set { mPartType = value; }
}
public string ItemName
{
get { return mItemName; }
set { mItemName = value; }
}
}
}
