Create Card View Example (C#)
This example shows how to create a file or folder card
view.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SolidWorks Enterprise PDM, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual C# > Windows
Forms Application.
// b. Type CreateCardView_CSharp in Name.
// c. Click Browse and navigate to the folder where to
create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer
toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with
this code.
// g. To create the form, replace the code in
Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference,
click
// Assemblies > Framework in the left-side panel,
browse to the top folder of
// your SolidWorks Enterprise PDM installation, locate and
click
// EPDM.Interop.epdm.dll, click Open, and click
Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
// click Microsoft.VisualBasic, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties,
and set
// Embed Interop Types to False to handle
methods that pass arrays of
// structures.
// 5.
Check out a file from the vault.
// 6. Click Debug > Start Debugging or press F5.
//
// Postconditions:

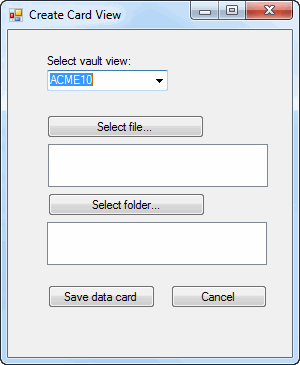

// 1. Displays the Create Card View dialog box.
// 2. Select a vault view.
// 3. Click either:
// a. Select file.
// b. In the Select File dialog:
// 1. Click the file checked out in
Preconditions step 5.
// 2. Click Open.
// c. In the file data card, modify a field.
// d. Click Save data card.
// e. Check in the file and inspect its data
card.
// - or -
// a. Select folder.
// b. In the Select Folder dialog, select a vault folder
and click OK.
// c. In the folder data card, click the Edit Values
tab.
// d. Modify a field.
// e. Click Save data card.
// f. Inspect the folder card in the vault.
// 4. Close the Create Card View dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;
namespace CreateCardView_CSharp
{
public partial class Form1 : Form, EdmCallback
{
private IEdmVault5 vault1 = null;
IEdmCardView63 view;
IEdmFile7 aFile;
IEdmFolder5 aFolder;
public Form1()
{
InitializeComponent();
}
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SelectFile_Click(System.Object sender, System.EventArgs e)
{
try
{
File1List.Items.Clear();
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
SelectFolder.Enabled = false;
//Set the initial directory in the Select File dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
//Show the Select File dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog1.ShowDialog();
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
// do nothing
}
else
{
foreach (string FileName in OpenFileDialog1.FileNames)
{
File1List.Items.Add(FileName);
aFile = (IEdmFile7)vault1.GetFileFromPath(FileName, out aFolder);
ShowCard(aFolder, aFile.ID);
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SelectFolder_Click(System.Object sender, System.EventArgs e)
{
try
{
Folder1List.Items.Clear();
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
SelectFile.Enabled = false;
aFolder = vault1.BrowseForFolder(this.Handle.ToInt32(), "Select folder:");
if (Folder1List == null)
return;
Folder1List.Items.Add(aFolder.Name);
ShowCard(aFolder, 0);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SaveCard_Click(System.Object sender, System.EventArgs e)
{
try
{
Folder1List.Items.Clear();
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
view.SaveData();
SaveCard.Enabled = false;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
//Display the card of the selected file or folder
public void ShowCard(IEdmFolder5 folder, int fileID)
{
// Create the card view interface
view = (IEdmCardView63)folder.CreateCardView(fileID, this.Handle.ToInt32(), 40, 300, (EdmCallback)this);
if (view == null)
{
Interaction.MsgBox("The file does not have a card.");
return;
}
// Set input focus to the first control in the card
view.SetFocus(0);
// Enable all controls in the card
view.Update(EdmCardViewUpdateType.EdmCvut_EnableCtrl);
// Get the size needed to display the card
int width = 0;
int height = 0;
view.GetCardSize(out width, out height);
// Resize the form window to make room for the card
this.Width = (width + 100);
this.Height = (height + 400);
view.ShowWindow(true);
SaveCard.Enabled = false;
}
public void CancelButton_Click(System.Object sender, System.EventArgs e)
{
view.OnCancel();
SaveCard.Enabled = false;
SelectFile.Enabled = true;
SelectFolder.Enabled = true;
view.ShowWindow(false);
}
public void SetModifiedFlag()
{
SaveCard.Enabled = true;
}
public void SetProgressPos(int lPos)
{
}
public void SetProgressRange(int lMin, int lMax)
{
}
public void SetStatusMessage(string bsMessage)
{
}
}
}
Back to top
//Form1.Designer.cs
namespace CreateCardView_CSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.SelectFile = new System.Windows.Forms.Button();
this.File1List = new System.Windows.Forms.ListBox();
this.SaveCard = new System.Windows.Forms.Button();
this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
this.SelectFolder = new System.Windows.Forms.Button();
this.Folder1List = new System.Windows.Forms.ListBox();
this.Cancel = new System.Windows.Forms.Button();
this.SuspendLayout();
//
//VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
//SelectFile
//
this.SelectFile.Location = new System.Drawing.Point(39, 85);
this.SelectFile.Name = "SelectFile";
this.SelectFile.Size = new System.Drawing.Size(157, 23);
this.SelectFile.TabIndex = 2;
this.SelectFile.Text = "Select file...";
this.SelectFile.UseVisualStyleBackColor = true;
this.SelectFile.Click += new System.EventHandler(SelectFile_Click);
//
//File1List
//
this.File1List.FormattingEnabled = true;
this.File1List.HorizontalScrollbar = true;
this.File1List.Location = new System.Drawing.Point(40, 114);
this.File1List.Name = "File1List";
this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
this.File1List.Size = new System.Drawing.Size(220, 43);
this.File1List.TabIndex = 4;
//
//SaveCard
//
this.SaveCard.Location = new System.Drawing.Point(40, 255);
this.SaveCard.Name = "SaveCard";
this.SaveCard.Size = new System.Drawing.Size(107, 23);
this.SaveCard.TabIndex = 6;
this.SaveCard.Text = "Save data card";
this.SaveCard.UseVisualStyleBackColor = true;
this.SaveCard.Click +=new System.EventHandler(SaveCard_Click);
//
//OpenFileDialog1
//
this.OpenFileDialog1.FileName = "OpenFileDialog1";
this.OpenFileDialog1.Title = "Select File";
//
//SelectFolder
//
this.SelectFolder.Location = new System.Drawing.Point(40, 163);
this.SelectFolder.Name = "SelectFolder";
this.SelectFolder.Size = new System.Drawing.Size(157, 23);
this.SelectFolder.TabIndex = 7;
this.SelectFolder.Text = "Select folder...";
this.SelectFolder.UseVisualStyleBackColor = true;
this.SelectFolder.Click += new System.EventHandler(this.SelectFolder_Click);
//
//Folder1List
//
this.Folder1List.FormattingEnabled = true;
this.Folder1List.Location = new System.Drawing.Point(39, 192);
this.Folder1List.Name = "Folder1List";
this.Folder1List.Size = new System.Drawing.Size(220, 43);
this.Folder1List.TabIndex = 8;
//
//Cancel
//
this.Cancel.Location = new System.Drawing.Point(163, 255);
this.Cancel.Name = "Cancel";
this.Cancel.Size = new System.Drawing.Size(96, 23);
this.Cancel.TabIndex = 9;
this.Cancel.Text = "Cancel";
this.Cancel.UseVisualStyleBackColor = true;
this.Cancel.Click += new System.EventHandler(this.Form1_Load);
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 327);
this.Controls.Add(this.Cancel);
this.Controls.Add(this.Folder1List);
this.Controls.Add(this.SelectFolder);
this.Controls.Add(this.SaveCard);
this.Controls.Add(this.File1List);
this.Controls.Add(this.SelectFile);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Create Card View";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Button SelectFile;
internal System.Windows.Forms.ListBox File1List;
internal System.Windows.Forms.Button SaveCard;
internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;
internal System.Windows.Forms.Button SelectFolder;
internal System.Windows.Forms.ListBox Folder1List;
internal System.Windows.Forms.Button Cancel;
#endregion
}
}
Back to top
