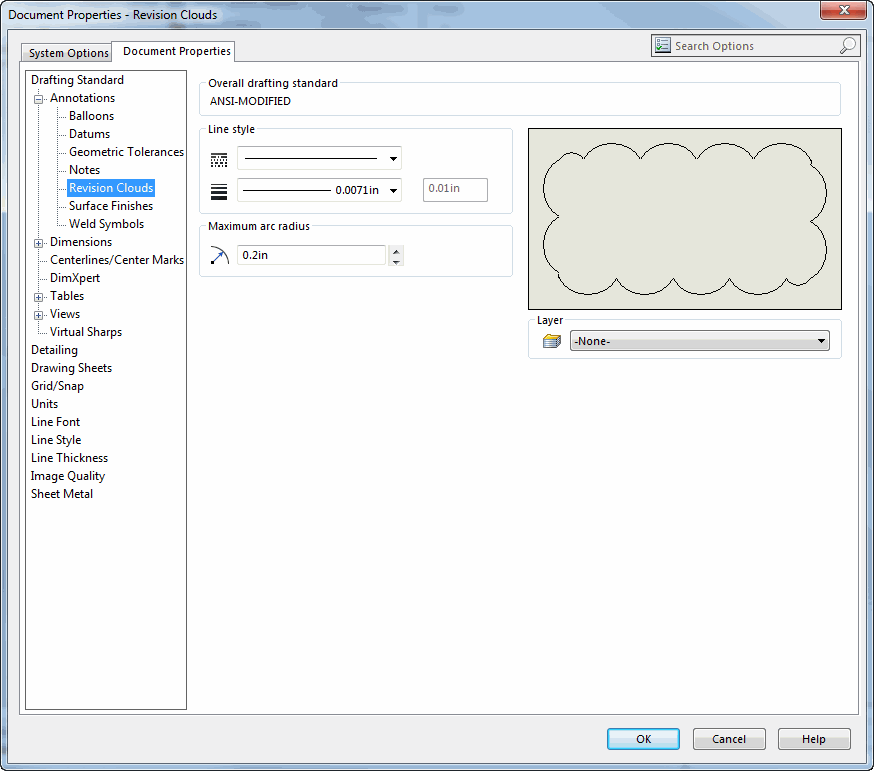

> Document Properties > Annotations > Revision Clouds

)

Valid Options:

"Border"

"Dimensions"

"Notes"

"BOM"

"FORMAT"

This setting is available only on drawings; depending on drawing, some options may not apply

Search 'Document Properties > Annotations > Revision Clouds' in the SOLIDWORKS Knowledge Base.

Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:		Feedback on Help Topics
Page:		Document Properties > Annotations > Revision Clouds
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Cancel

Print Topic

Select the scope of content to print:

This topic and all topics linked from this topic

Just this topic

This topic and only immediate topics under it

This selected topic and all subtopics

Cancel

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

Never show this message again

Web Help Content Version: API Help (English only) 2014 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.

Setting	Get/Set Methods	Return Value or <Value>	Comments
Overall drafting standard	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingRevisionCloud) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingRevisionCloud, swDetailingStandard_e.<Value>)	See swDetailingStandard_e for valid options	Specifies the overall drafting standard
Line style - Frame Style	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineStyle, swUserPreferenceOption_e.swDetailingRevisionCloud) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineStyle, swUserPreferenceOption_e.swDetailingRevisionCloud, swLineStyles_e.<Value>)	See swLineStyles_e for valid options	Specifies the style of the frames of revision clouds
Line style - Frame Thickness	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineThickness, swUserPreferenceOption_e.swDetailingRevisionCloud) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineThickness, swUserPreferenceOption_e.swDetailingRevisionCloud, swLineWeights_e.<Value>)	See swLineWeights_e for valid options	Specifies the thickness of the frames of revision clouds
Line style - Custom Thickness	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudLineThicknessCustom, swUserPreferenceOption_e.swDetailingRevisionCloud) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudLineThicknessCustom, swUserPreferenceOption_e.swDetailingRevisionCloud, <Value>)	Double value	Specifies a custom thickness for the frames of revision clouds; sets Custom Thickness to the specified thickness and Frame Thickness to Custom Size
Maximum arc radius	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudMaxArcRadius, swUserPreferenceOption_e.swDetailingRevisionCloud) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudMaxArcRadius, swUserPreferenceOption_e.swDetailingRevisionCloud, <Value>)	Double value	Specifies the maximum radius of each frame arc
Layer	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingRevisionCloud) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingRevisionCloud, <Value>)	Valid Options: "Border" "Dimensions" "Notes" "BOM" "FORMAT"	This setting is available only on drawings; depending on drawing, some options may not apply
