> System Options > View

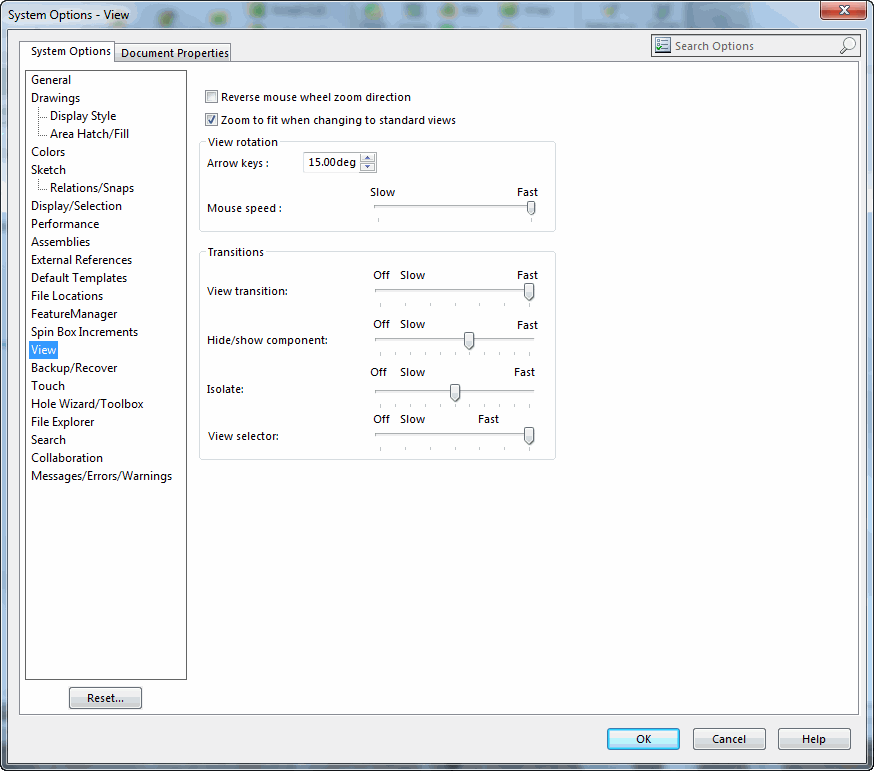

System Options > View

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Reverse mouse wheel zoom direction	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewReverseWheelZoomDirection) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewReverseWheelZoomDirection, <OnFlag>)	Boolean value	Specifies whether to reverse a mouse's wheel zoom direction
Zoom to fit when changing to standard views	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewZoomFitAndCenter) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewZoomFitAndCenter, <OnFlag>)	Boolean value	Specifies whether to zoom-to-fit view when changing to standard views
View rotation - Arrow keys	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewRotationArrowKeys) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewRotationArrowKeys, <Value>)	Double value in radians	Specifies angle increment for view rotation when arrow keys are used to rotate model
View rotation - Mouse speed	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swViewRotationMouseSpeed) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swViewRotationMouseSpeed, <Value>)	Integer value from 1 to 100	Specifies the speed of rotation when you use the mouse to rotate the model or assembly component
Transitions - View transition	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewAnimationSpeed) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewAnimationSpeed, <Value>)	Double value: 0 = off >0 - 3 seconds	Specifies animation-like speed when changing views
Transitions - Hide/show component	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionHideShowComponent) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionHideShowComponent, <Value>)	Double value	Specifies the animation-like speed at which to transition the view when hiding or showing components
Transitions - Isolate	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionIsolate) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewTransitionIsolate, <Value>)	Double value	Specifies the animation-like speed at which to transition the view when isolating a component in assemblies and multi-body parts
Transitions - View selector	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewSelectorSpeed) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swViewSelectorSpeed, <Value>)	Double value	Specifies the speed of the View selector animation; 0 indicates no animation and the current model is shown in the background; 3.0 is the maximum value
