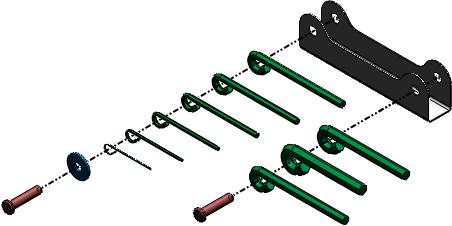

Exploded Views in Drawings

You can create an exploded drawing view from an existing exploded assembly view. The actual view is a model view, usually in the isometric orientation.

1. In the assembly:
   1. Create a new configuration.
   2. Create an exploded view.



2. In the drawing:
   1. Insert a model view of the assembly using the orientation needed for the exploded view.



   2. Right-click the drawing view and click Properties.
   3. In the Drawing View Properties dialog box, under Configuration information, select Show in exploded state.



   Alternatively, to display any of these drawing views in an exploded state, you can:

   • Right-click the drawing view and click Show in Exploded State.
   • In the Drawing View PropertyManager, under Reference Configuration, select Show in exploded state.
